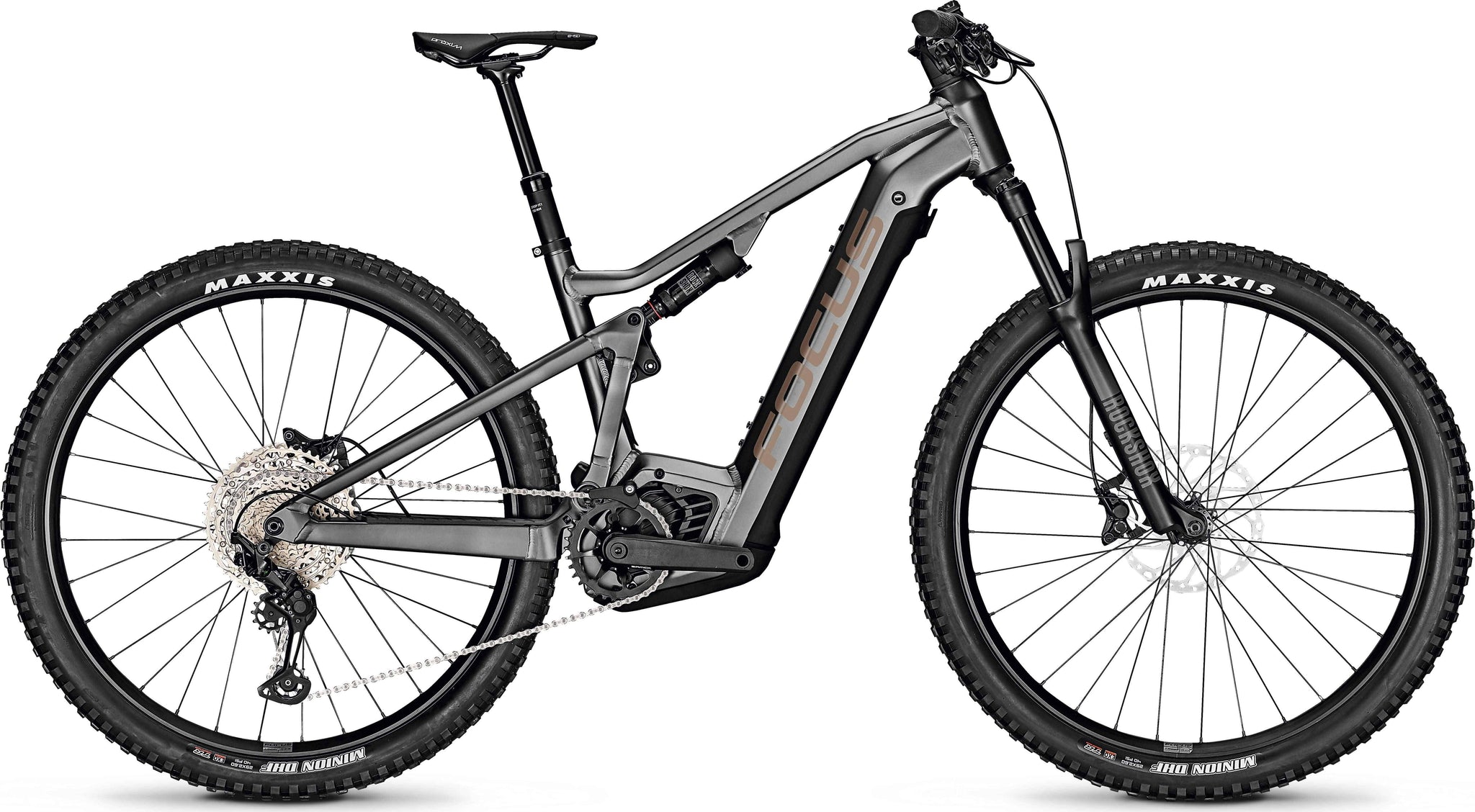

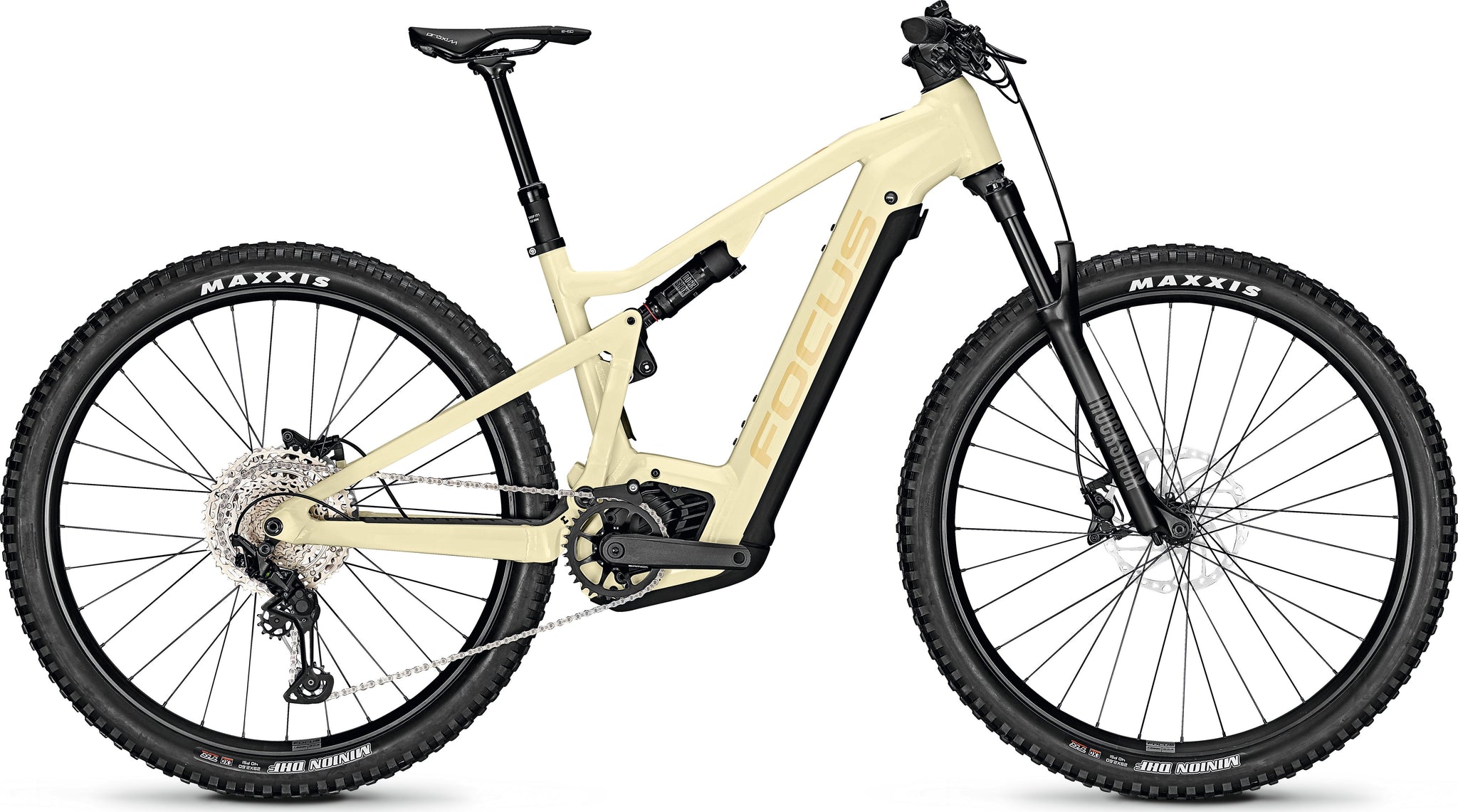

2023 Focus Thron2 6.8
Item is in stockHurry! Low inventoryAvailable now - Contact us
Item is unavailable
GEOMETRY
| S | M | L | XL | ||
|---|---|---|---|---|---|
| SIZE (MM) | 39 | 42 | 45 | 48 | |
| SIZE | 390 | 420 | 450 | 480 | |
| HANDLEBAR WIDTH (MM) | 800 | 800 | 800 | 800 | |
| STEM LENGTH | 50 | 50 | 50 | 50 | |
| CRANKARM LENGTH (MM) | 165 | 165 | 165 | 165 | |
| SEAT POST LENGTH | 390 | 440 | 480 | 480 | |
| A | SEAT TUBE LENGTH | 390 | 420 | 450 | 480 |
| B | EFFECTIVE TOP TUBE | 579 | 605 | 640 | 675 |
| C | HEAD TUBE ANGLE (MM) | 66 | 66 | 66 | 66 |
| D | EFFECTIVE SEAT TUBE ANGLE (MM) | 75 | 75 | 75 | 75 |
| E | CHAINSTAY LENGTH | 455 | 455 | 455 | 455 |
| F | BOTTOM BRACKET DROP | 30 | 30 | 30 | 30 |
| G | HEAD TUBE LENGTH | 115 | 120 | 140 | 160 |
| H | FORK CONSTRUCTION HEIGHT | 540 | 540 | 540 | 540 |
| I | PRE-RAKED FORK | 44 | 44 | 44 | 44 |
| J | WHEELBASE LENGTH | 1175 | 1206 | 1242 | 1281 |
| K | STACK | 609 | 623 | 637 | 655 |
| L | REACH | 415 | 440 | 470 | 500 |
SPECIFICATION
FRAME MATERIAL
Aluminium
FRAME
7005 hydroformed aluminium, 3D forging, 130mm F.O.L.D. kinematics, 148x12 mm thru-axle, USB-C port, post mount 180 mm,MY23 mtb
FORK
SR Suntour Aion 35 EVO, RC-PCS 29, 110x15 mm, 44 mm rake
TRAVEL OF SUSPENSION FORK
130 mm
SHOCK
Rock Shox Deluxe Select, 210/50 mm, hardware: 25,0 x 8,0 mm, no Bushing
MOTOR
Bosch Performance CX Smart, 85 Nm, 250 W
BATTERY WATT-HOURS
625 Wh,750 Wh
BATTERY AMPERE HOURS
20,8 Ah
DISPLAY
Bosch LED Remote + Kiox 300
SHIFTER
Shimano Deore XT M8100, 12-speed
REAR DERAILLEUR
Shimano Deore XT M8100, 12-speed
SPROCKET
Shimano Deore CS-M6100, 12-speed
CHAIN
Shimano CN-LG500
CRANKSET
Samox EC40 ISIS
TRANSMISSION OF DRIVE
front: 36, rear: 10-51
BOTTOM BRACKET
Integrated in Drive Unit
HANDLEBAR
Aluminium, 800 mm, rise: 30 mm, backsweep: 9°,Aluminium, 800 mm, rise: 12,5 mm, backsweep: 9°
STEM
FOCUS C.I.S. integrated, 50 mm, 0°, 35 mm, aluminium,Aluminium, 70mm, 35degree
HEADSET
ACROS ZS56/ZS56 (ICR), FOCUS C.I.S. Integrated
SADDLE
Proxim X400
SEATPOST
Post Moderne dropper post PM-214, 34.9 mm
BRAKE CALIPER
SRAM DB8, 4-piston
BRAKE LEVER
SRAM DB8
BRAKE
Disc
RIMS
RODI TRYP30, 30-622
REAR HUB
Novatec D462SB, 12x148 mm,Novatec D462, 12x148 mm
FRONT HUB
Thru axle, 15x100 mm,Novatec D041, 15x110 mm
TIRES
Maxxis Minion DHF, 2.6 Dual EXO TR, 66-622
GEARS
12
BIKE WEIGHT INCL. BATTERY IN KG.
26,7,26,7 kg
CHAINRINGS
1x
SEATPOST TYPE
Dropper seatpost
SHIFTING TYPE
Mechanical shifting
SIZE
39,45,42,48
