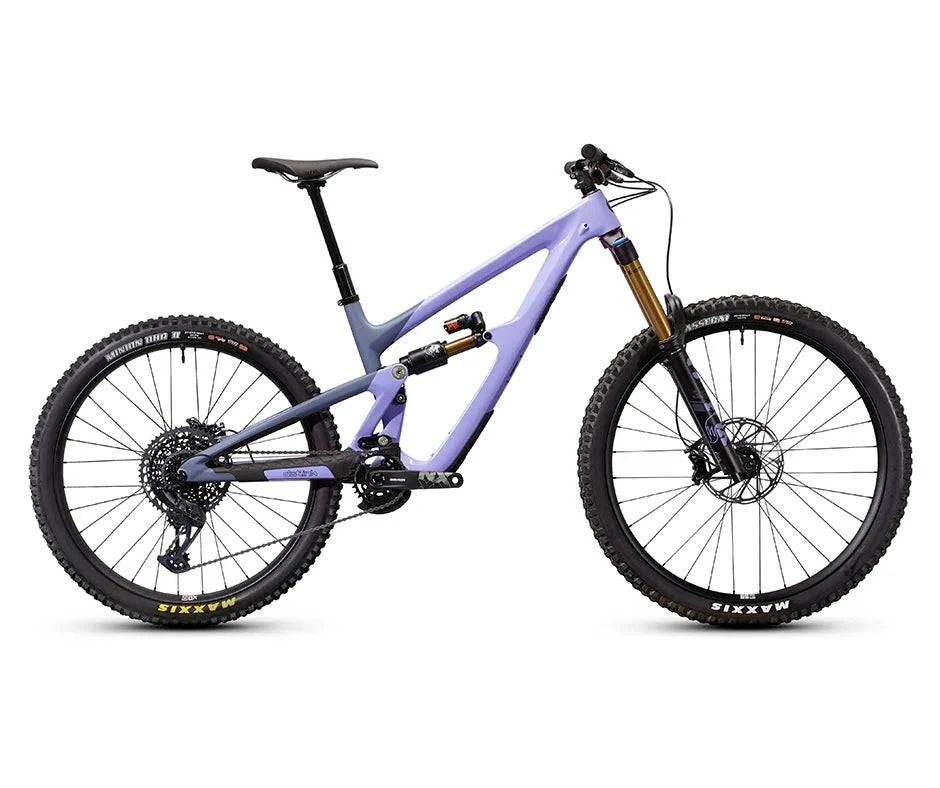

2023 Ibis HD6 - Sram GX Build
HD6
The HD6 is the evolution of one of the most successful enduro bikes in history. Designed with input from our Enduro World Cup team and building upon our award-winning Ripmo and HD lines, the HD6 features increased travel, a completely redesigned suspension layout, and mixed wheels.
In order to place every size rider in the same position over the rear wheel, the HD’s seat tube angles get steeper as frame size increases. With four sizes, this would have resulted in larger jumps in reach, so we added a fifth size. The smaller increments across five sizes means that you can find just the right size. We encourage riders to choose their bike size based on their desired reach and top tube measurements.
Fork | Fox Float 38 Factory Series, 180mm, 29”, 110×15 |

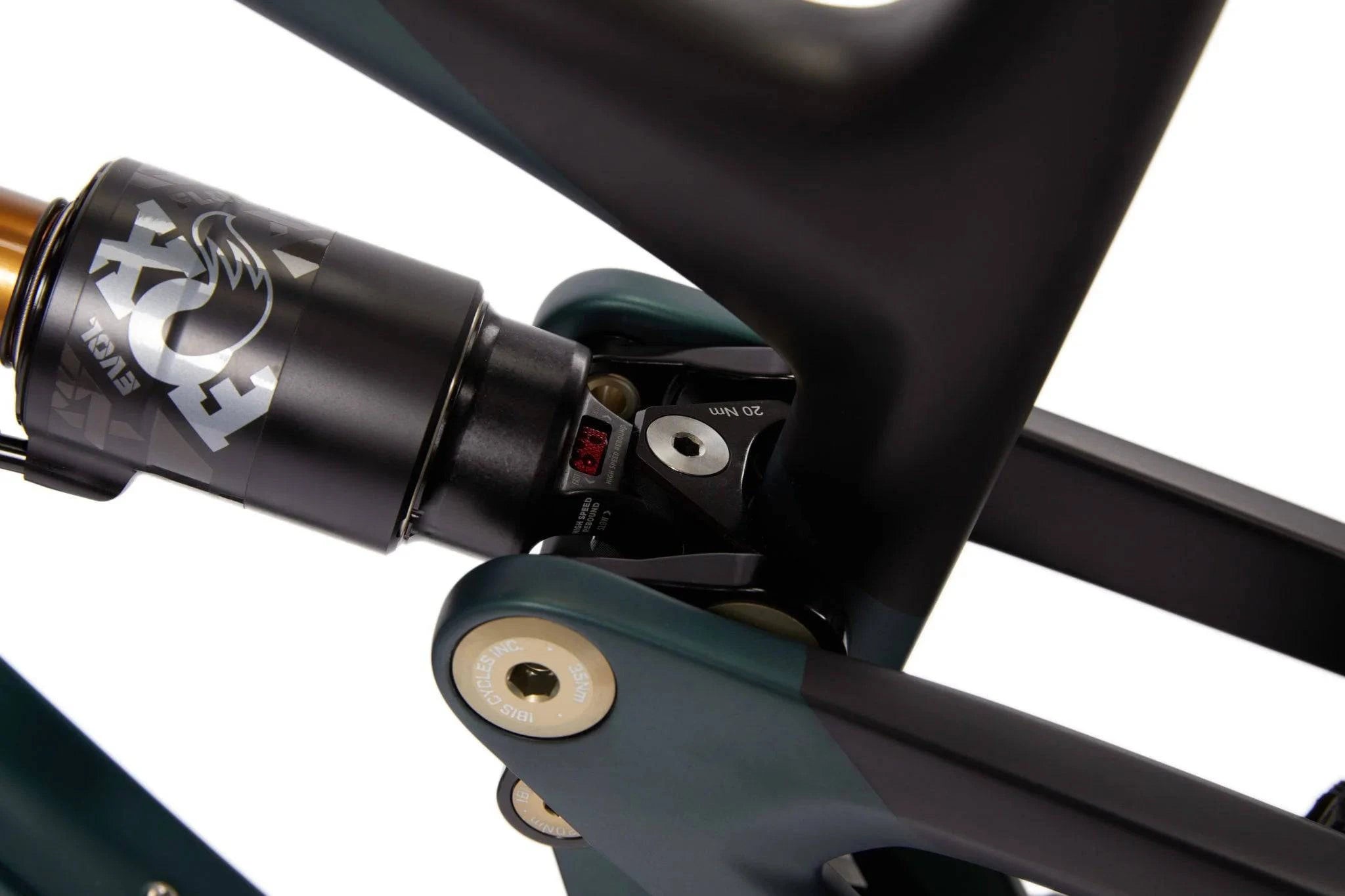

Shock | Fox Float X2 Factory Series with EVOL, 230mm x 65mm |
Wheels | Blackbird Send Alloy, 32 Hole, F: Send I 29”, R: Send II 27.5” |
Tires | Maxxis Assegai, 29” x 2.5” / Maxxis DHR, 27.5” x 2.4” |
Brakes | SRAM Code RSC, 4 piston |
Brake Rotors | SRAM 6-Bolt, F: 200mm/R: 200mm |
Cranks | SRAM NX Eagle, DUB, 32T Alloy Ring, 170mm |
Bottom Bracket | SRAM DUB BSA |
Rear Derailleur | SRAM GX Eagle |
Shift Levers | SRAM NX Eagle |
Cassette | SRAM XG 1275, 10-52T |
Chain | SRAM NX Eagle |
Chain Guide | MRP AMg SE |
Headset | Cane Creek 40 ZS44/ZS56 |
Grips | Lizard Skin Charger Evo |
Handlebar | Ibis Aluminum, 780mm |
Stem | Ibis 31.8mm |
S/M: 40mm, L/XL: 50mm | |
Seatpost | KS Rage-i Dropper |
S: 125mm, M: 150mm, L/XL: 170mm | |
Saddle | WTB Silverado |
