Orbea Gain Carbon OMR monocoque structure, Integrated Seat clamp with STVZO light, ICR cable routing, Thru Axle 12x142mm rear, thread M12x2 P1, Flat Mount disc, 700x35 max tyre, BB386 EVO, Mahle X20 AMC plug.

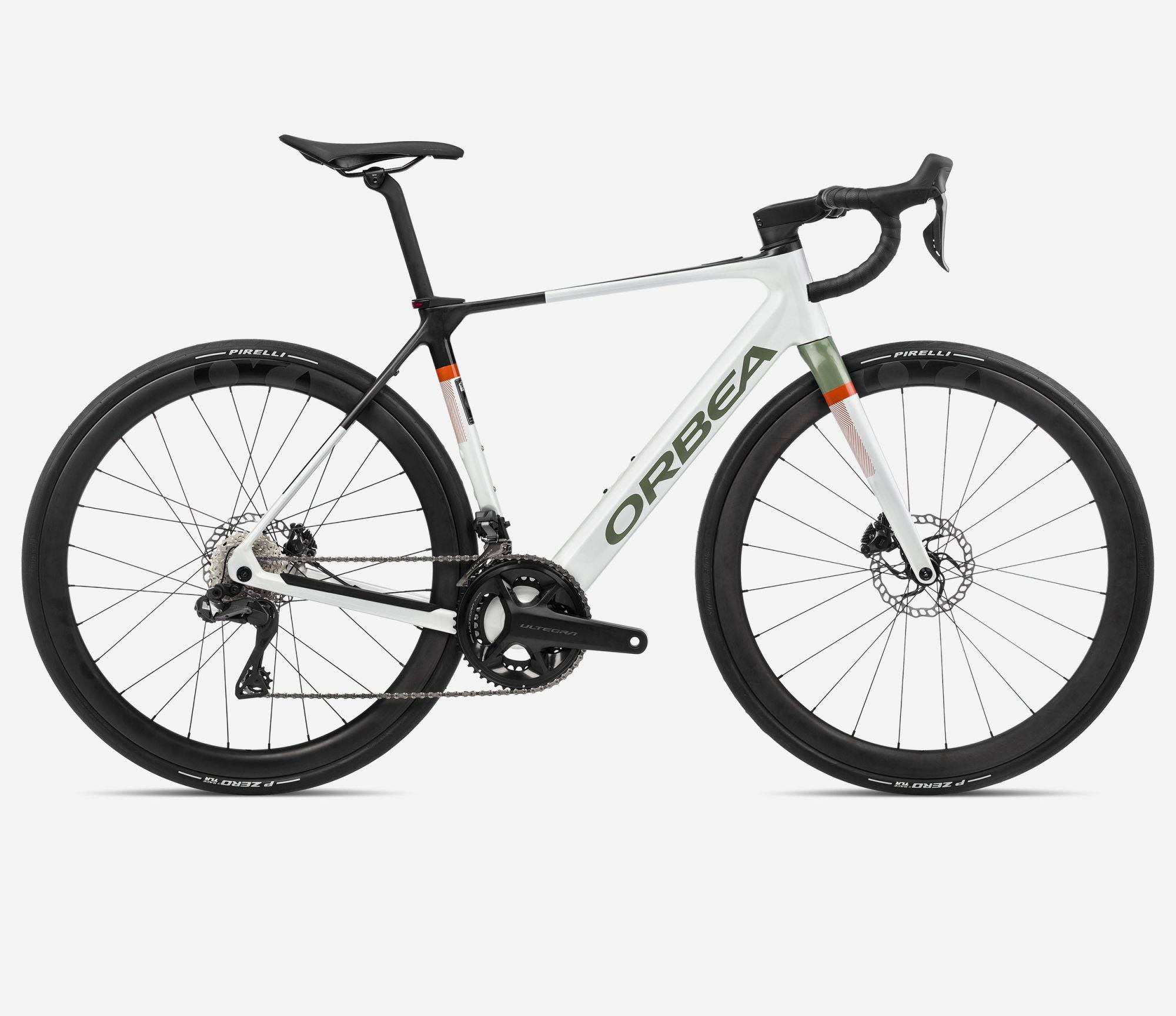

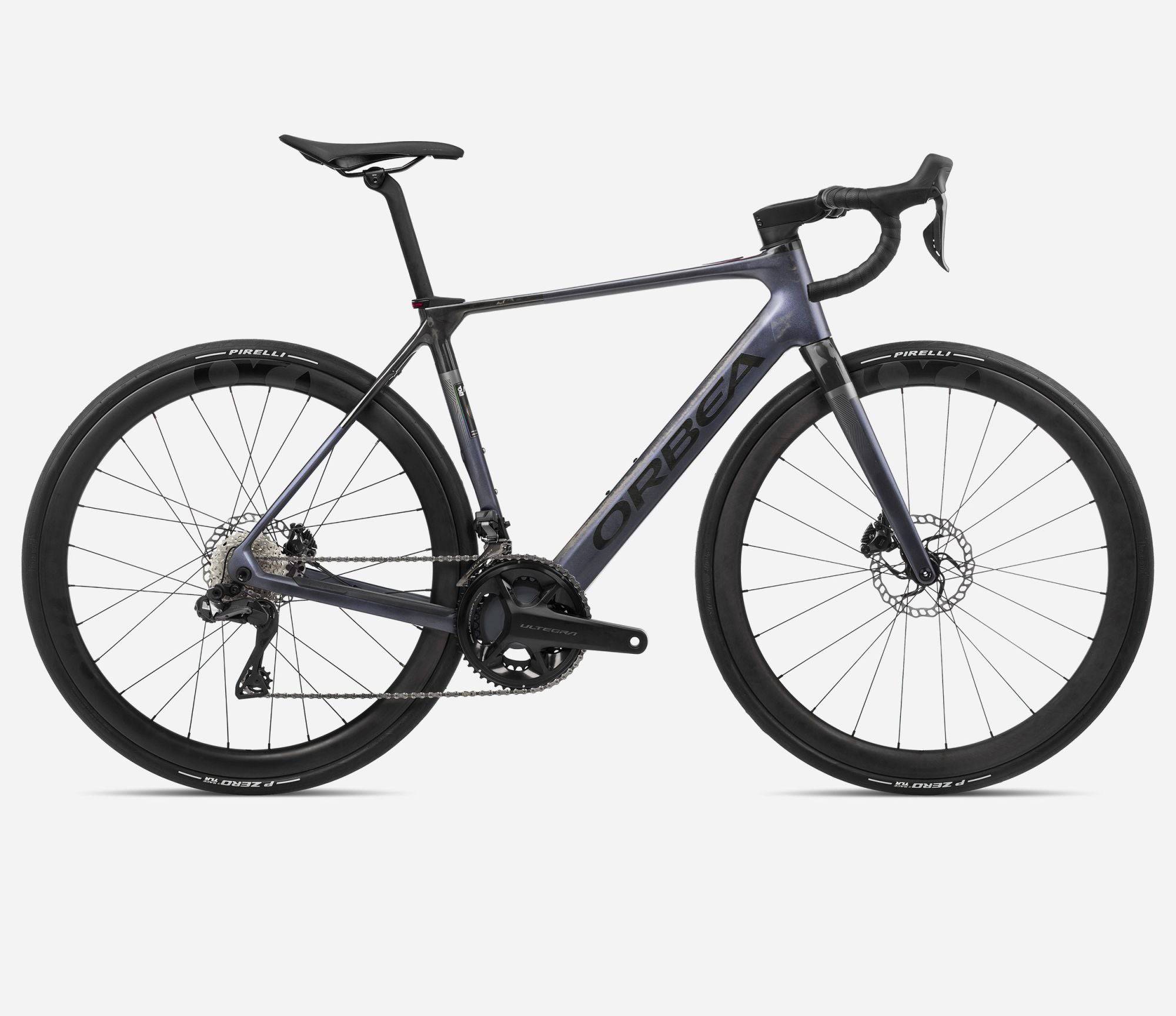

2023 Orbea Gain M20e
Item is in stockHurry! Low inventoryAvailable now - Contact us
Item is unavailable
SPECIFICATIONS
FRAMES
FRAME
FORK
Gain OMR carbon fork, 700x35 maximun tyre, flat mount disc mount, 12x100mm Thru Axle
HEADSET
FSA 1-1/2" Integrated Aluminium Cup
DRIVETRAIN
CRANKSET
Shimano Ultegra R8100 34x50t
SHIFTERS
Shimano ST-8170
CASSETTE
Shimano Ultegra R8100 11-30t 12-Speed
REAR DERAILLEUR
Shimano Ultegra Di2 R8150
FRONT DERAILLEUR
Shimano Ultegra Di2 R8150
CHAIN
Shimano M8100
COCKPIT
HANDLEBAR
OC Road Performance RP10-R Carbon, Rise 15, Reach 70, Drop 125
STEM
OC Road Performance RP10, -8º
BRAKES
BRAKES
Shimano R8170 Hydraulic Disc
BRAKES CONFIGURATION
WHEELS
WHEELS
Carbon 42, Tubeless, 21c
TYRES
Pirelli P ZERO™ Race TLR 700x30c
FRONT WHEEL AXLE
Orbea Thru Axle 12x100mm M12x2 P1 Lite
REAR WHEEL AXLE
Orbea Thru Axle 12x142mm M12x2 P1 Lite
COMPONENTS
SEATPOST
OC Performance XP10-S Carbon, 27.2mm, Setback 20
SADDLE
Fizik Aliante R5
ACCESSORIES
FRONT LIGHT
Rear position light, on saddle clamp, COB Led, On/Off, 12 Lumen. STVZO
HANDLEBAR TAPE
Orbea Anti-Slippery/Shock Proof
EBIKE
MOTOR
Mahle motor hub X20, ALC
BATTERY
Mahle iX350 36V 353Wh
RANGE EXTENDER
N/A
DISPLAY
Mahle Pulsar One monochrome ANT+ LEV
CHARGER
Mahle Active Charger up to 4A
REMOTE
Mahle ONE Head Unit (BT/ANT+)
REMOTE2
Mahle Handlebar Dual eShifter
We reserve the right to make changes to the product and component information appearing on this site at any time without notice, including with respect to equipment, specifications, models, colors, and materials.
XS
S
M
L
XL
XXL
11 - SEAT TUBE (C-T)
430
460
490
515
540
570
22 - TOP TUBE (EFF)
516
535
555
569
587
602
33 - HEAD TUBE
113
136
158
181
203
225
44 - CHAINSTAY
415
415
415
415
415
415
55 - BB HEIGHT
263
263
263
265
265
265
66 - BB DROP
78
78
78
76
76
76
77 - WHEELBASE
984
998
1011
1022
1035
1047
88 - HEAD ANGLE
71º
71.2º
71.5º
72º
72.2º
72.5º
99 - SEAT ANGLE
74.5º
74º
73.5º
73.5º
73.2º
73.2º
1010 - STANDOVER
728
756
782
803
830
844
1111 - REACH
370
378
386
394
402
410
1212 - STACK
525
547
569
591
613
635
1313 - FORK LENGTH
380
380
380
380
380
380
14RAKE
50
50
50
50
50
50
158 - TRAIL
64.5
63.3
61.4
58
57
55
