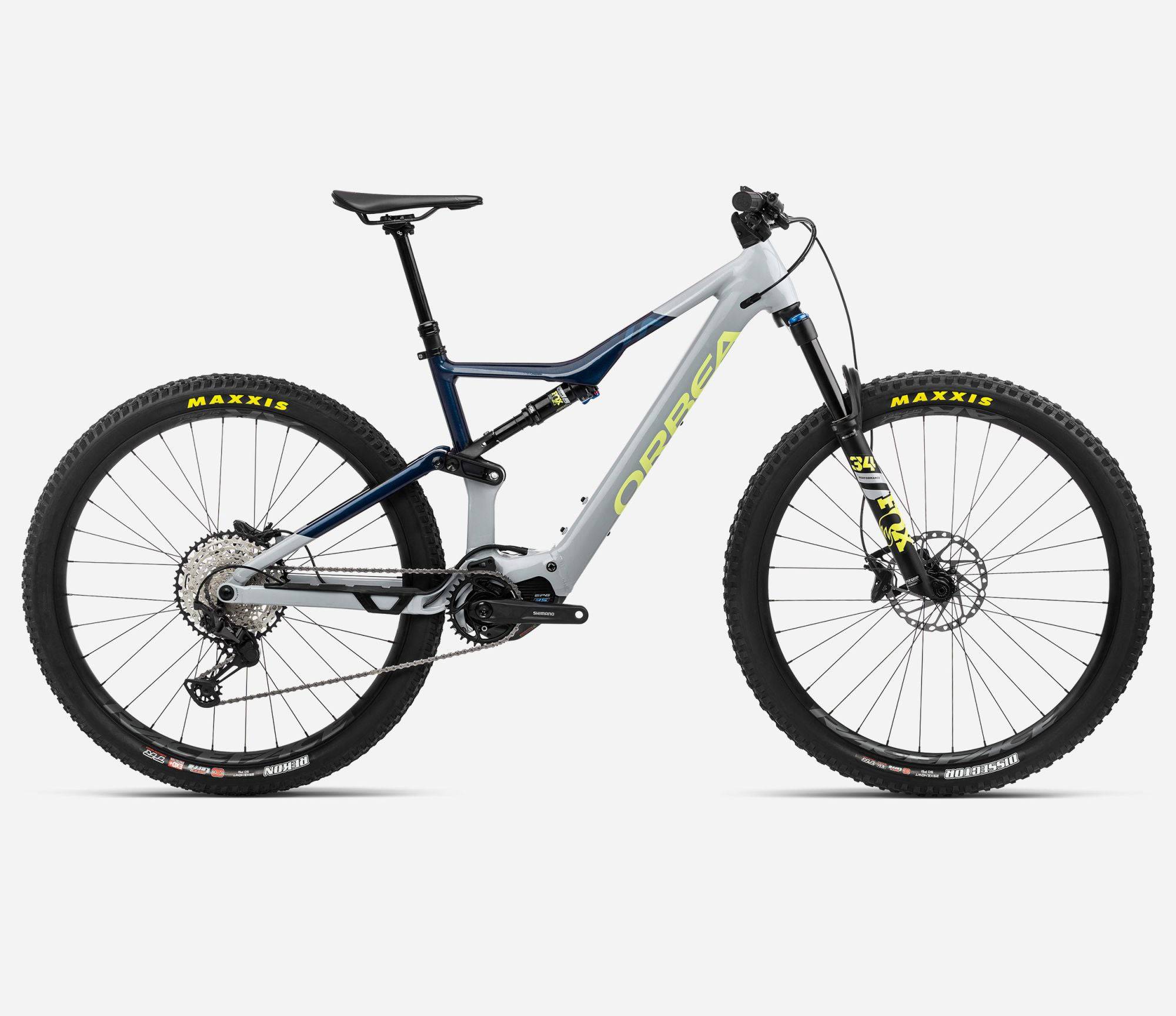

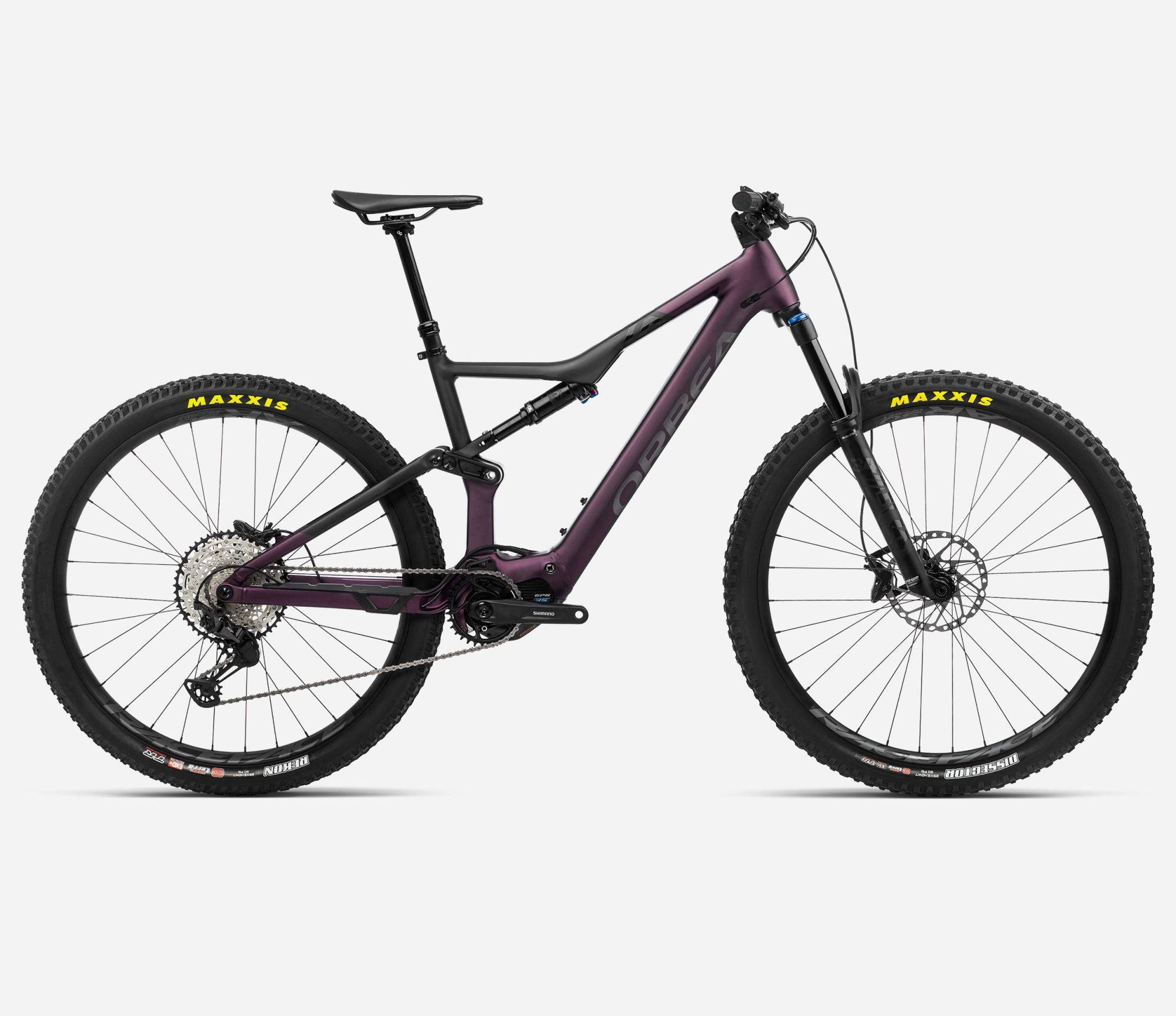

Orbea Rise Hydro 140mm travel 29" Boost 12x148
2023 ORBEA RISE H20
Item is in stockHurry! Low inventoryAvailable now - Contact us
Item is unavailable
SPECIFICATIONS
FRAMES
FRAME
SHOCK
Fox Float DPS Performance 3-Position Evol custom tune 210x55mm
FORK
Fox 34 Float Performance 140 3-Position QR15x110
HEADSET
Acros Alloy 1-1/8 - 1-1/2" Integrated
DRIVETRAIN
CHAINRING
e*thirteen e*spec Direct Mount 32T Boost
CRANK
Shimano Steps EM600
SHIFTERS
Shimano SLX M7100 I-Spec EV
CASSETTE
Shimano CS-M7100 10-51t 12-Speed
REAR DERAILLEUR
Shimano XT M8100 SGS Shadow Plus
CHAIN
Shimano M6100
CHAINGUIDE
Orbea Rise chainguide
COCKPIT
HANDLEBAR
OC Mountain Control MC31, Rise20, Width 800
STEM
OC Mountain Control MC20, 0º
BRAKES
BRAKES
Shimano M6120 Hydraulic Disc
ROTORS
180mm Front /180mm Rear
BRAKES CONFIGURATION
WHEELS
WHEELS
Race Face AR 30c Tubeless Ready
TYRES
Maxxis Dissector 2.40" 60 TPI 3CMaxxTerra Exo TLR
TYRES
Maxxis Rekon 2.40" 120 TPI 3CMaxxTerra Exo+ TLR
FRONT WHEEL AXLE
N/A
COMPONENTS
SEATPOST
OC Mountain Control MC20, 31.6mm, Dropper
SEATPOST LEVER
Shimano SL-MT500 I-Spec EV
SADDLE
Fizik Taiga S-alloy rail
EBIKE
MOTOR
Shimano EP600-RS
BATTERY
Orbea Internal 540Wh (Optional 250 Wh Range Extender)
RANGE EXTENDER
N/A
DISPLAY
N/A
CHARGER
Orbea 2.Generation eBike Smart charger 42V/2-4A
REMOTE
EN600-L
We reserve the right to make changes to the product and component information appearing on this site at any time without notice, including with respect to equipment, specifications, models, colors, and materials.
S
M
L
XL
11 - SEAT TUBE (C-T)
381
419
457
508
22 - TOP TUBE (EFF)
565
592
619
649
33 - HEAD TUBE
95
105
120
140
44 - CHAINSTAY
445
445
445
445
55 - BB HEIGHT
336
336
336336
336
66 - BB DROP
35/32
35/32
35/32
35/32
77 - WHEELBASE
1180
1205
1229
1255
88 - HEAD ANGLE
66º/65,5º
66º/65,5º
66º/65,5º
66º/65,5º
99 - SEAT ANGLE
77º/76,5º
77º/76,5º
77º/76,5º
77º/76,5º
1010 - STANDOVER
710
736
766
776
1111 - REACH
425
450
474
500
1212 - STACK
604
613
627
646
1313 - FORK LENGTH
547
547
547
547
14RAKE
44
44
44
44
Spanish innovation
Orbea Cycles
Orbea has been making bikes since the 1940's, and entered the mountain bike world in the late 80's. Today, Orbea make some of the best bikes in the world, particularly in the e-bike field, where their Rise and Wild models offer industry leading performance.
