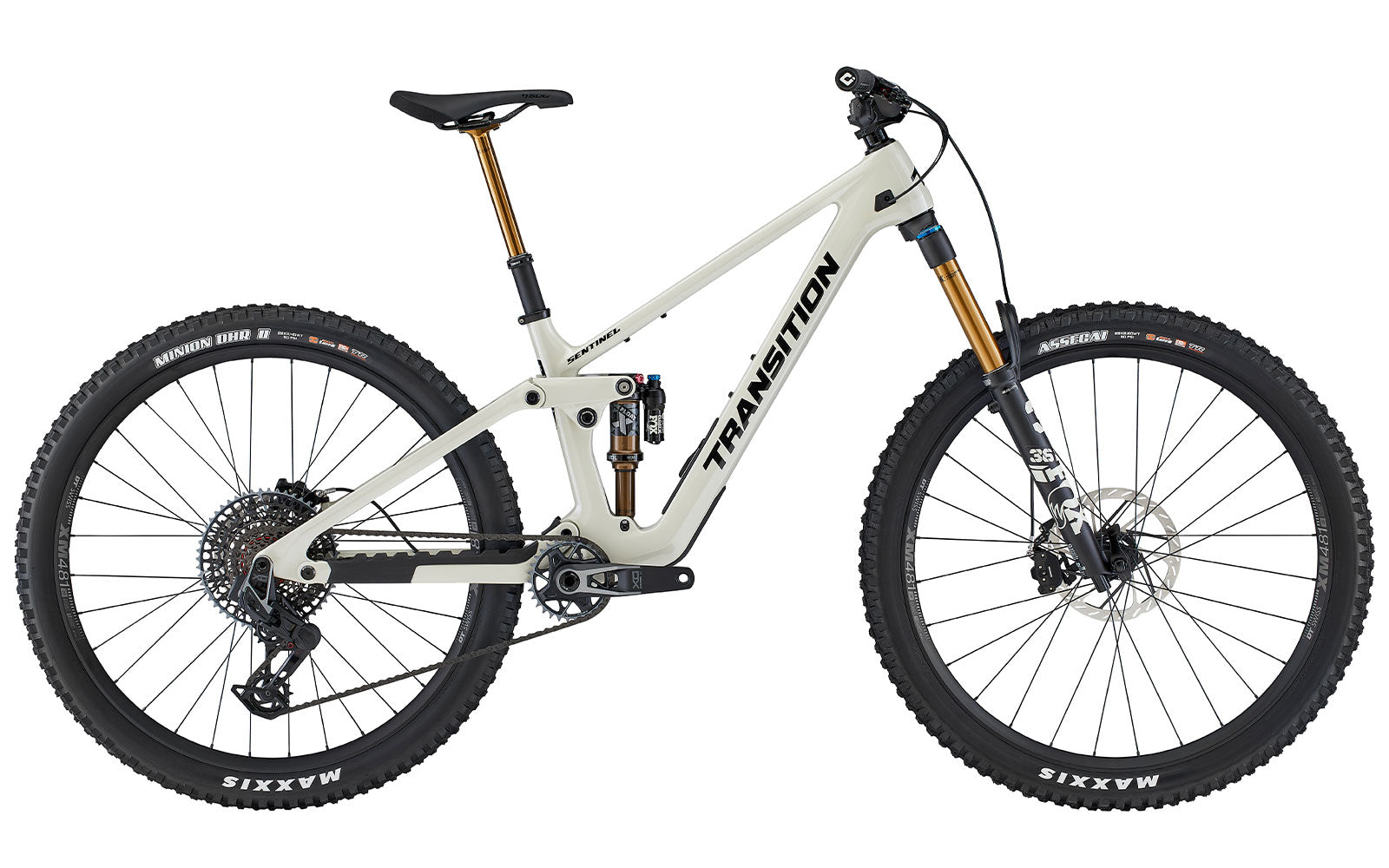

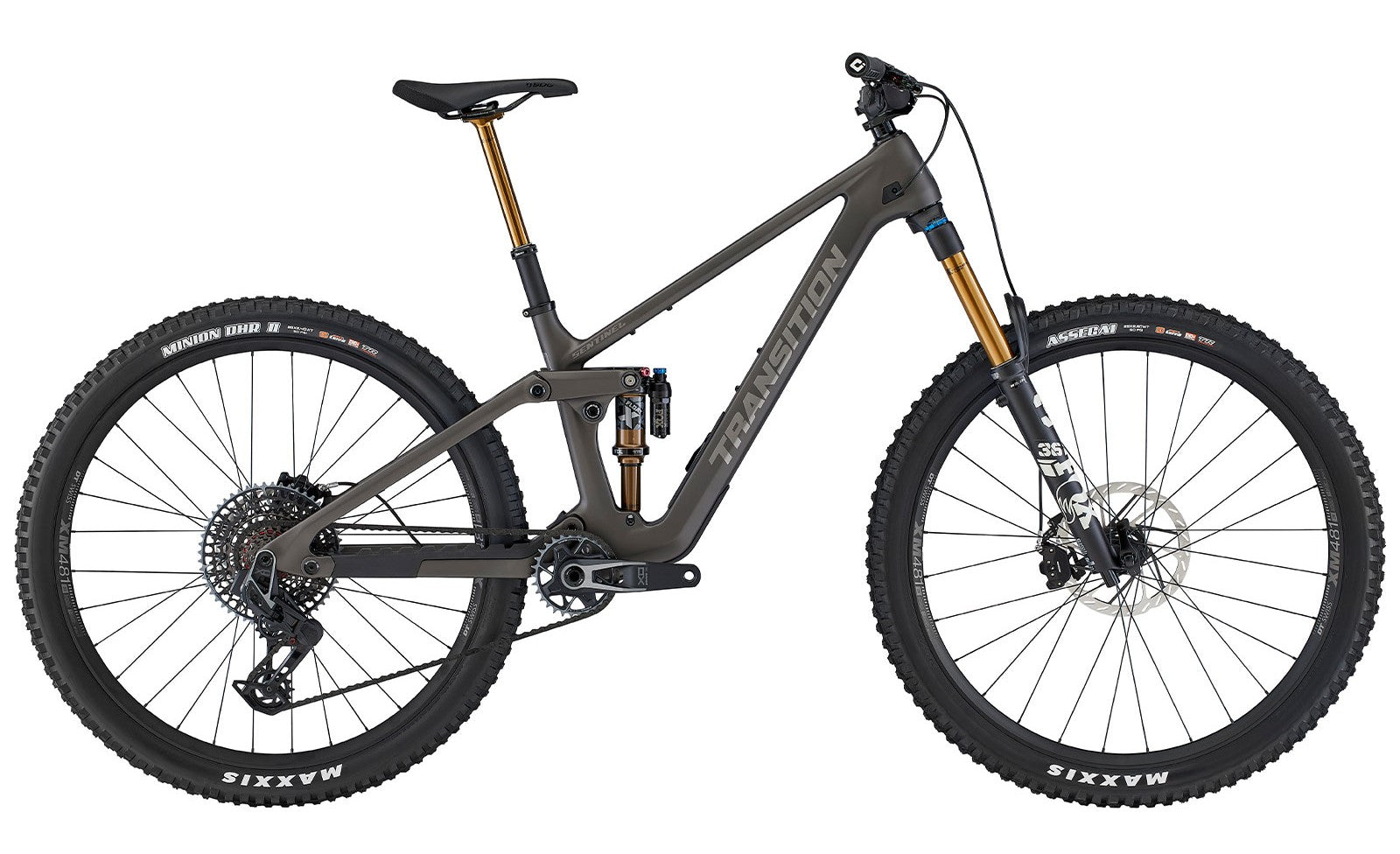

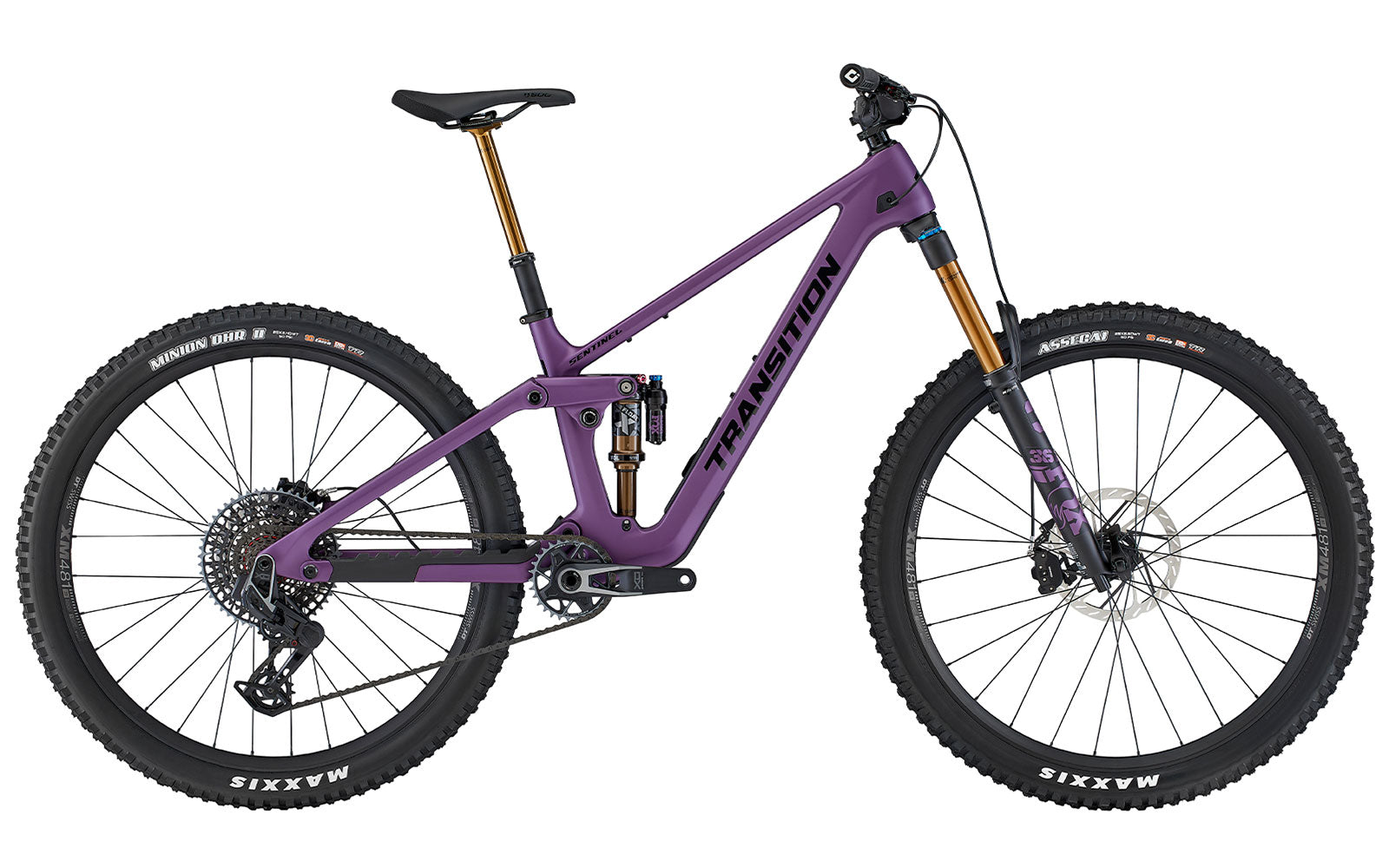

2025 TRANSITION SENTINEL CARBON COMPLETE XO AXS
Item is in stockHurry! Low inventoryAvailable now - Contact us
Item is unavailable
SEND-IT-ALL ON THE ALL NEW SENTINEL
A bike that says yes to every trail, every ride and begs for more.
The Sentinel rides the lines between planted bottomless sender and playful, poppy trail pony. This leaves it right in the sweet spot, as we like to call it. It's versatile attitude helps riders excel and push their limits, making it the one bike most will need. Its intuitive nature is easy to get acquainted with; you'll find yourself sending lines, jumps, and maneuvers you always felt were beyond your ability. Where before you went around, now you go over. Where you pushed up, now you pedal. Where you rolled, now you boost. It's time to Send-It-All.
For full details about the Transition Sentinel, view the Transition website here.
- Less | - Less | - Less | - Less | - Less | - Less | - Less | |||||||||||||||||||||||||||||||||||||||||||
FRAME | Sentinel Alloy 150mm | Sentinel Alloy 150mm | Sentinel Carbon 150mm | Sentinel Carbon 150mm | Sentinel Carbon 150mm | Sentinel Alloy 150mm | Sentinel Carbon 150mm | ||||||||||||||||||||||||||||||||||||||||||
WHEEL SIZE | 29" (X-Small 27.5") | 29" (X-Small 27.5") | 29" (X-Small 27.5") | 29" (X-Small 27.5") | 29" (X-Small 27.5") | 29" (X-Small 27.5") | 29" (X-Small 27.5") | ||||||||||||||||||||||||||||||||||||||||||
REAR SHOCK | RockShox SuperDeluxe Base (205x60mm) |
RockShox Super Deluxe Select+ (205x60mm) |
RockShox Super Deluxe Select (205x60mm) |
RockShox Super Deluxe Ultimate (205x60mm) |
Fox Float X Factory (205x60mm) |
RockShox Super Deluxe Ultimate (205x60mm) |
RockShox Super Deluxe Ultimate (205x60mm) |
||||||||||||||||||||||||||||||||||||||||||
FORK | RockShox Psylo Gold RC (160mm) |
RockShox Lyrik Select+ (160mm) |
RockShox Lyrik Base (160mm) |
RockShox Lyrik Ultimate (160mm) |
Fox Float 36 Grip X2 Factory (160mm) |
||||||||||||||||||||||||||||||||||||||||||||
HEADSET | FSA No.57E | FSA No.57E | FSA No.57E | FSA No.57E | FSA No.57E | ||||||||||||||||||||||||||||||||||||||||||||
STEM | RaceFace Aeffect R (40mm) | ANVL Swage (40mm) | RaceFace Aeffect R (40mm) | ANVL Swage (40mm) | ANVL Swage (40mm) | ||||||||||||||||||||||||||||||||||||||||||||
HANDLEBAR | RaceFace Chester XS/SM (800x20mm) MD/LG/XL/XXL (800x35mm) |
ANVL Mandrel Alloy 35 XS/SM (800x20mm) MD/LG/XL (800x30mm) XXL (800x40mm) |
RaceFace Chester XS/SM (800x20mm) MD/LG/XL/XXL (800x35mm) |
ANVL Mandrel Alloy 35 XS/SM (800x20mm) MD/LG/XL (800x30mm) XXL (800x40mm) |
OneUp Carbon Bar XS/SM (800x20mm) MD/LG/XL/XXL (800x35mm) |
||||||||||||||||||||||||||||||||||||||||||||
GRIPS | ODI Elite Flow Lock-On | ODI Elite Flow Lock-On | ODI Elite Flow Lock-On | ODI Elite Flow Lock-On | ODI Elite Flow Lock-On | ||||||||||||||||||||||||||||||||||||||||||||
SADDLE | SDG Bel Air 3 | SDG Bel Air 3 | SDG Bel Air 3 | SDG Bel Air 3 | SDG Bel Air 3 LUX | ||||||||||||||||||||||||||||||||||||||||||||
SEATPOST | SDG Tellis XS (125mm) SM (150mm) MD (170mm) LG (200mm) XL/XXL (230mm) |
OneUp Dropper Post XS (120mm) SM (150mm) MD (190mm) LG (210mm) XL/XXL (240mm) |
SDG Tellis XS (125mm) SM (150mm) MD (170mm) LG (200mm) XL/XXL (230mm) |
OneUp Dropper Post XS (120mm) SM (150mm) MD (190mm) LG (210mm) XL/XXL (240mm) |
Fox Transfer Factory XS (120mm) SM (150mm) MD (180mm) LG (210mm) XL/XXL (240mm) |
||||||||||||||||||||||||||||||||||||||||||||
BRAKES | Shimano Deore M6120 4 Piston | Shimano XT M8120 4 Piston | Shimano Deore M6120 4 Piston | Shimano XT M8120 4 Piston | SRAM Maven Silver | ||||||||||||||||||||||||||||||||||||||||||||
ROTORS | Shimano RT66 (203mm) | Shimano RT86 (203mm) | Shimano RT66 (203mm) | Shimano RT86 (203mm) | SRAM HS2 (200/180mm) | ||||||||||||||||||||||||||||||||||||||||||||
SHIFTER | Shimano Deore M6100 iSpec EV | Shimano XT M8100 iSpec EV | Shimano Deore M6100 iSpec EV | Shimano XT M8100 iSpec EV | SRAM POD Ultimate Bridge MMX | ||||||||||||||||||||||||||||||||||||||||||||
DERAILLEUR | Shimano Deore M6100 SGS 12sp | Shimano XT M8100 SGS 12sp | Shimano Deore M6100 SGS 12sp | Shimano XT M8100 SGS 12sp | SRAM XO AXS Eagle Transmission | ||||||||||||||||||||||||||||||||||||||||||||
CASSETTE | Shimano Deore M6100 (10-51t) | Shimano XT M8100 (10-51t) | Shimano Deore M6100 (10-51t) | Shimano XT M8100 (10-51t) | SRAM XS 1295 T-Type (10-52t) | ||||||||||||||||||||||||||||||||||||||||||||
CHAIN | Shimano Deore M6100 | Shimano XT M8100 | Shimano Deore M6100 | Shimano XT M8100 | SRAM XO Eagle Transmission | ||||||||||||||||||||||||||||||||||||||||||||
CRANK | Shimano Deore M6100 (30t/165mm) |
Shimano XT M8100 (30t/165mm) |
Shimano Deore M6100 (30t/165mm) |
Shimano XT M8100 (30t/165mm) |
SRAM XO Eagle DUB T-Type (30t/165mm) |
||||||||||||||||||||||||||||||||||||||||||||
RIMS | WTB ST i30 | DT Swiss M 1900 Spline 30 | WTB ST i30 | DT Swiss M 1900 Spline 30 | DT Swiss XM 481 | ||||||||||||||||||||||||||||||||||||||||||||
SPOKES | Pillar Double Butted | DT Swiss Champion | Pillar Double Butted | DT Swiss Champion | DT Swiss Competition | ||||||||||||||||||||||||||||||||||||||||||||
HUBS | Novatech D791SB/D902SB | DT Swiss 370 Ratchet LN | Novatech D791SB/D902SB | DT Swiss 370 Ratchet LN | DT Swiss 350 Classic DEG | ||||||||||||||||||||||||||||||||||||||||||||
TIRE/FRONT | Maxxis Assegai 3C EXO/TR (2.5) | Maxxis Assegai 3C EXO+ (2.5) | Maxxis Assegai 3C EXO/TR (2.5) | Maxxis Assegai 3C EXO+ (2.5) | Maxxis Assegai 3C EXO+ (2.5) | ||||||||||||||||||||||||||||||||||||||||||||
TIRE/REAR | Maxxis Minion DHRII 3C EXO/TR (2.4) | Maxxis Minion DHRII 3C EXO+ (2.4) | Maxxis Minion DHRII 3C EXO/TR (2.4) | Maxxis Minion DHRII 3C EXO+ (2.4) | Maxxis Minion DHRII 3C EXO+ (2.4) | ||||||||||||||||||||||||||||||||||||||||||||
INCLUDED | Fidlock Twist Bike Base Tubeless Valves & Sealant |
Fidlock Twist Bike Base Tubeless Valves & Sealant |
Fidlock Twist Bike Base Tubeless Valves & Sealant |
Fidlock Twist Bike Base Tubeless Valves & Sealant |
Fidlock Twist Bike Base SRAM AXS Battery Charger Tubeless Valves & Sealant |
Fidlock Twist Bike Base | Fidlock Twist Bike Base | ||||||||||||||||||||||||||||||||||||||||||
COLOR OPTIONS |
|
|
|
|
|
|
|
||||||||||||||||||||||||||||||||||||||||||
WEIGHT | 36.4 lbs/16.51 kg (Size MD) | 34.4 lbs/15.58 kg (Size MD) | 33.6 lbs/15.21 kg (Size MD) | 32.9 lbs / 14.92 kg (Size MD) | 33.2 lbs/15.07 kg (Size MD) | 9.91 lbs / 4.50 kg (Size MD) | 7.41 lbs / 3.36 kg (Size MD) | ||||||||||||||||||||||||||||||||||||||||||
Specs are subject to change at any time. All complete bikes are 95% assembled and packaged for quick and easy final assembly, and as such, Transition Bikes is not able to make special request build spec changes or modifications to packaging. |
