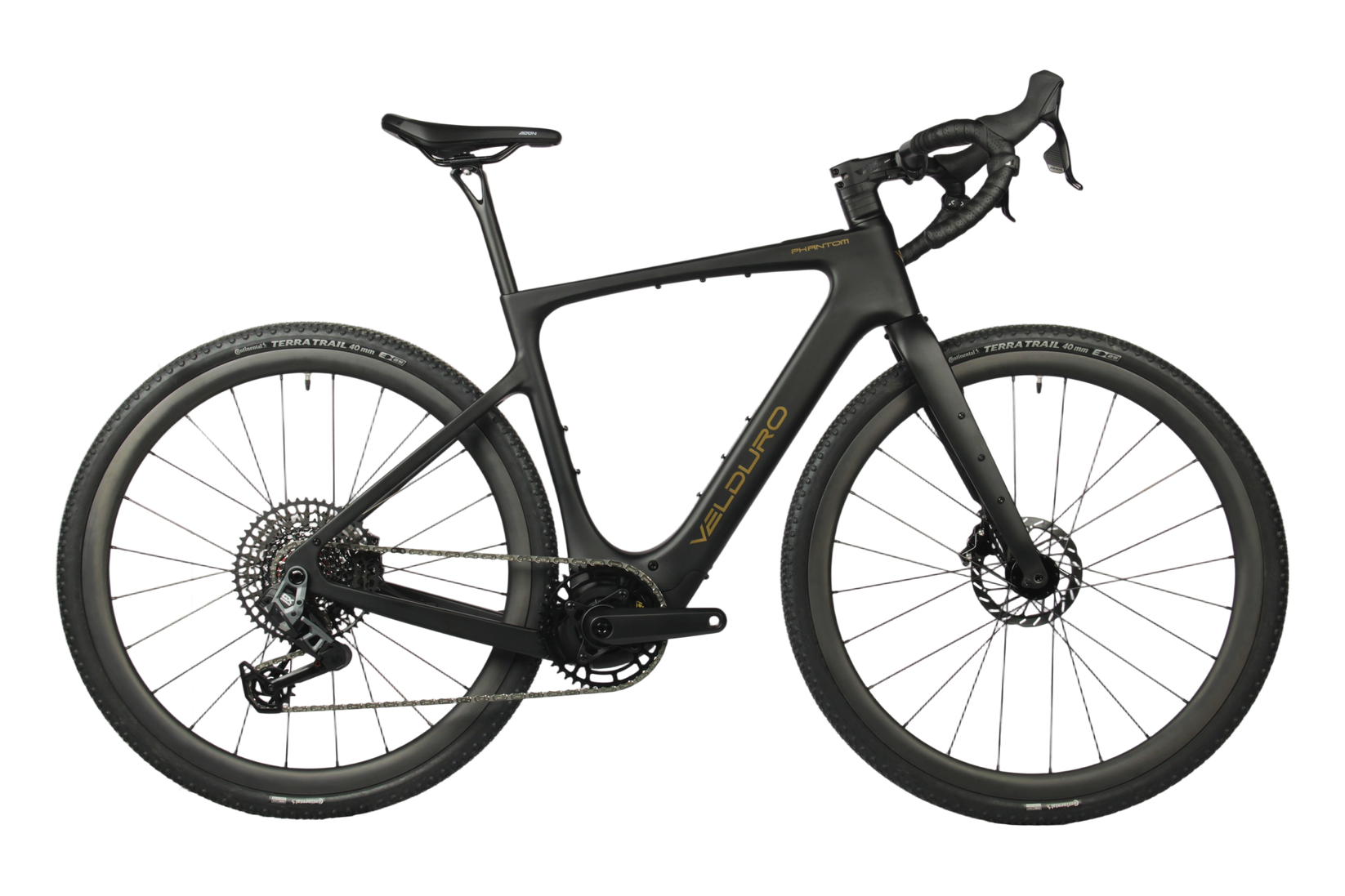

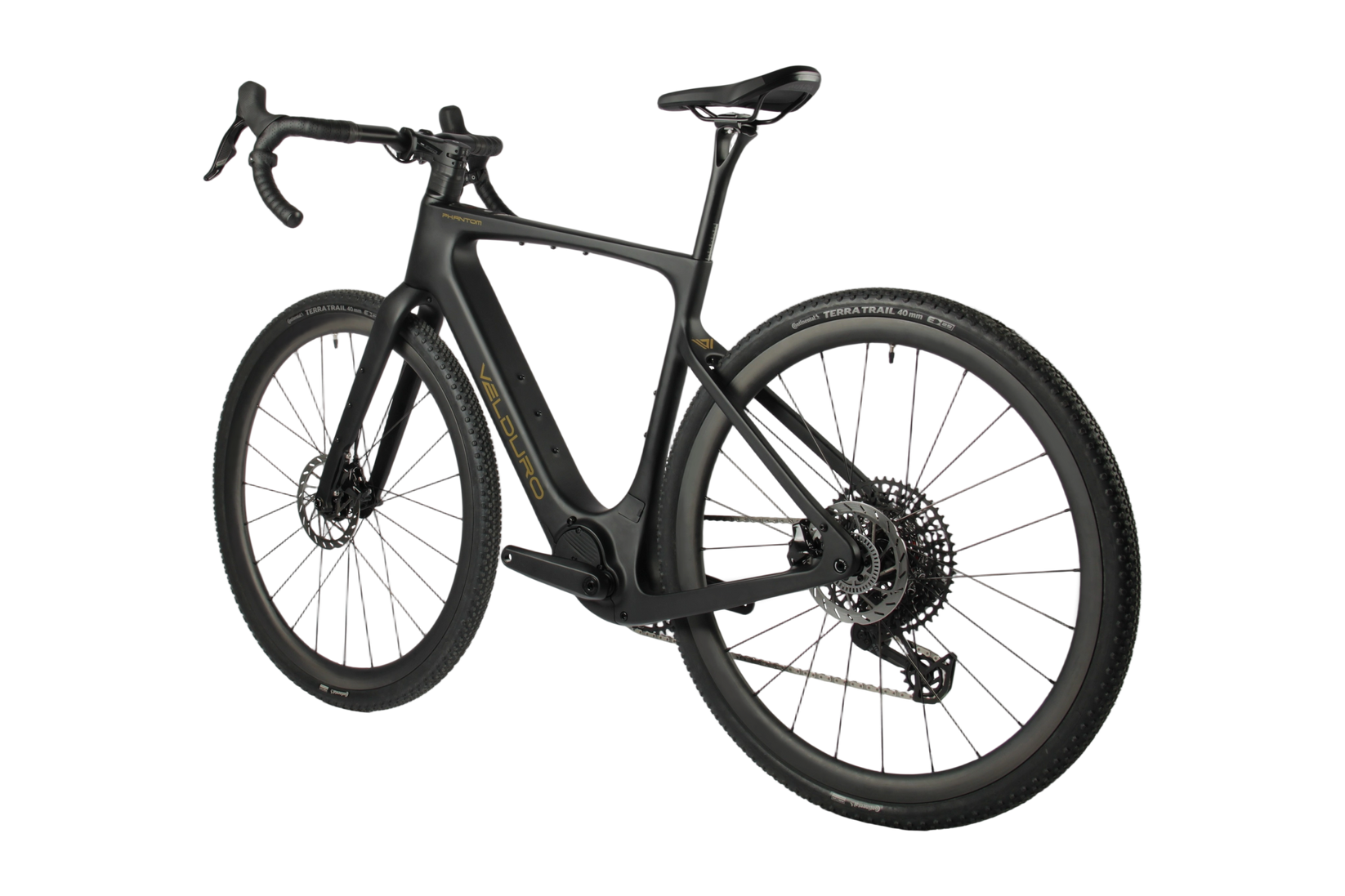

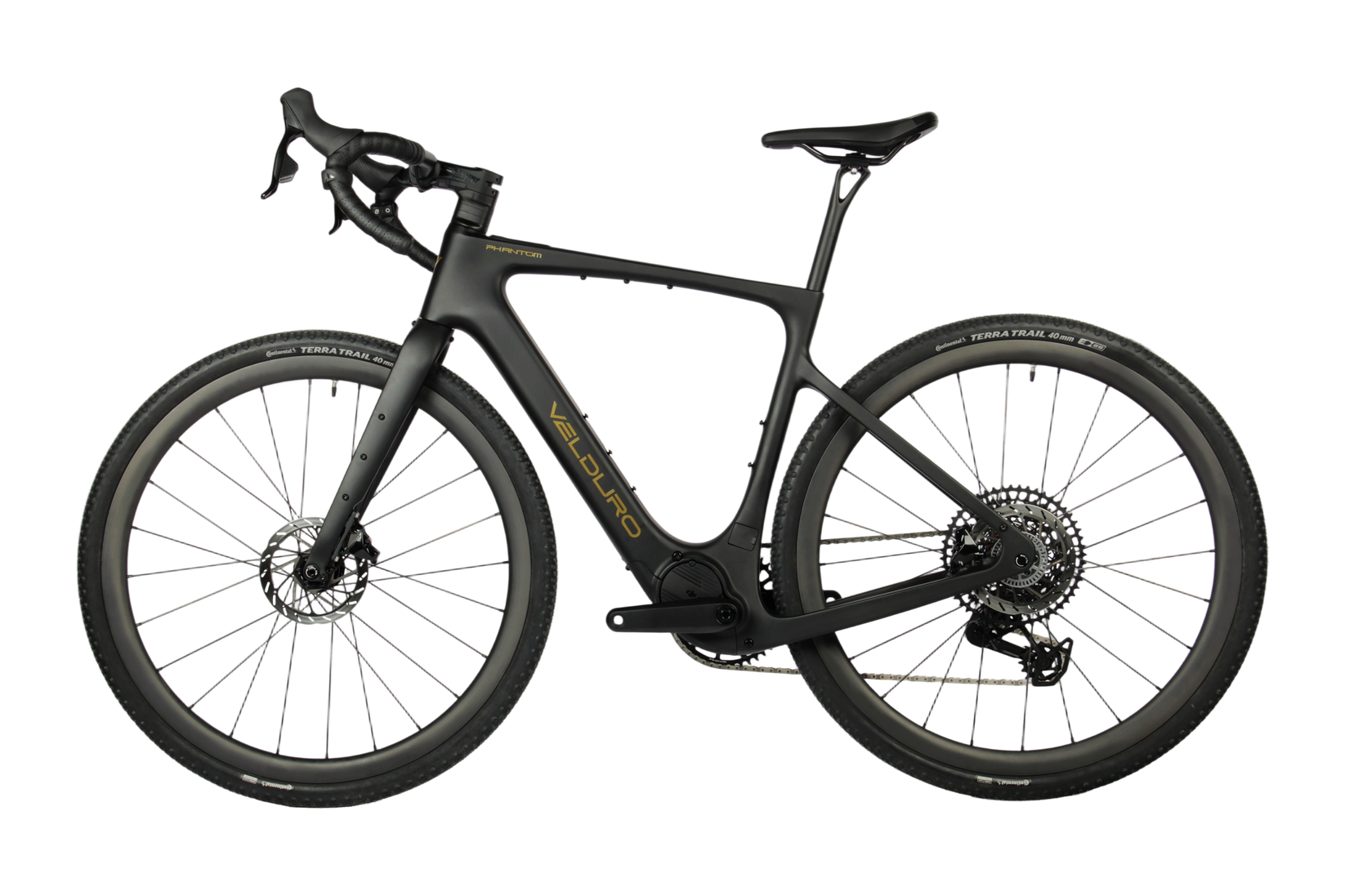

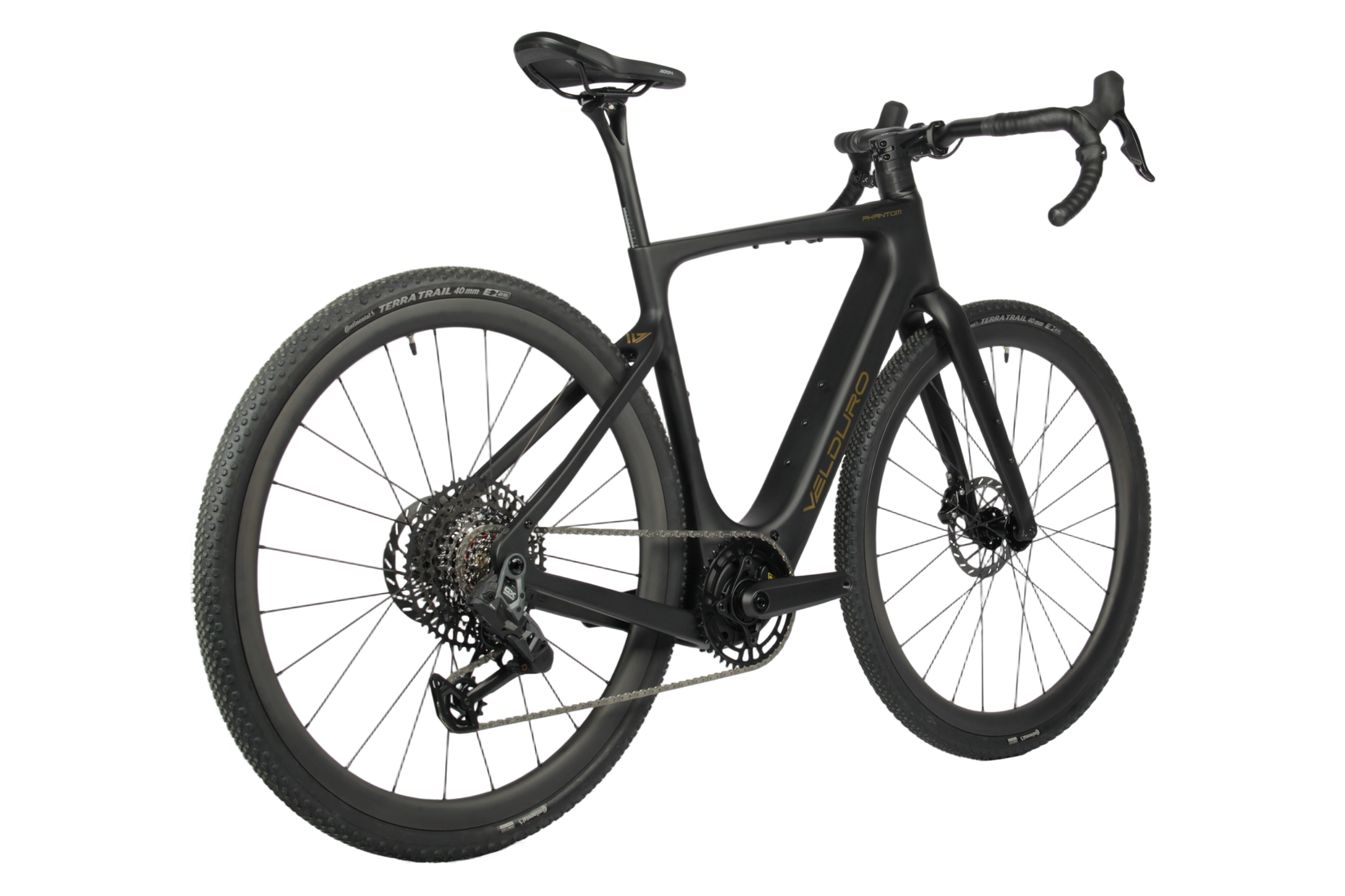

Weighing in at 14.9kg, powered by DJI Avinox and 600Wh battery, the Phantom X is the ultimate e-gravel machine.

Available in size small, medium, large and extra large.

SPECIFICATIONS

FRAME AND FORK
Frame: Carbon fibre monocoque e-gravel, 8 mounting points, rack mounts, maximum 50C tyre

Fork: Carbon gravel, 6 mounting points, 12x100, 50mm offset

Headset: FSA NO.55R 1.5" / ACE-2 Alloy

Rear Axle: 12x142mm alloy, black

DRIVETRAIN
Shifters: Sram Rival AXS E1

Derailleur: Sram Rival XPLR 13 speed with power cable

Cranks: Avinox SL 165mm

Cassette: Sram XG-1351-E1 10-46T

Chain: Sram Rival E1 Flattop

Chainring: Velduro alloy 44T, 104 BCD, 3mm inward offset

BRAKES
Brakes: Sram Rival

Rotors: Sram HS2 160mm

WHEELS AND TYRES
Rims: Velduro carbon 700C 24H black

Hubs: Velduro, R: 4 bearing XDR, F: 2 bearing

Spokes: Sapim race double butted

Tyres: Maxxis Rambler 700x45C

CONTROLS
Stem: FSA SMR Alloy -6° S:70mm M:80mm L:90mm XL:100mm

Handlerbar: Velduro carbon, 31.8, 15° flare, S/M:420mm L/XL: 440mm

Tape: Velduro black

Seatpost: Velduro carbon 27.2, 380mm

Saddle: Fizik Terra Aidon X5 145mm

MOTOR AND BATTERY
Motor: DJI Avinox M2 1100W 110Nm (125Nm boost)

Battery: DJI Avinox 36V 600Wh

Display: DJI AVinox 2"

Controller: Right & left wireless controllers

Charger: DJI Avinox 4A 168W
