Your dream build Rogue starts here

Transfer parts from another bike or start from the ground up.

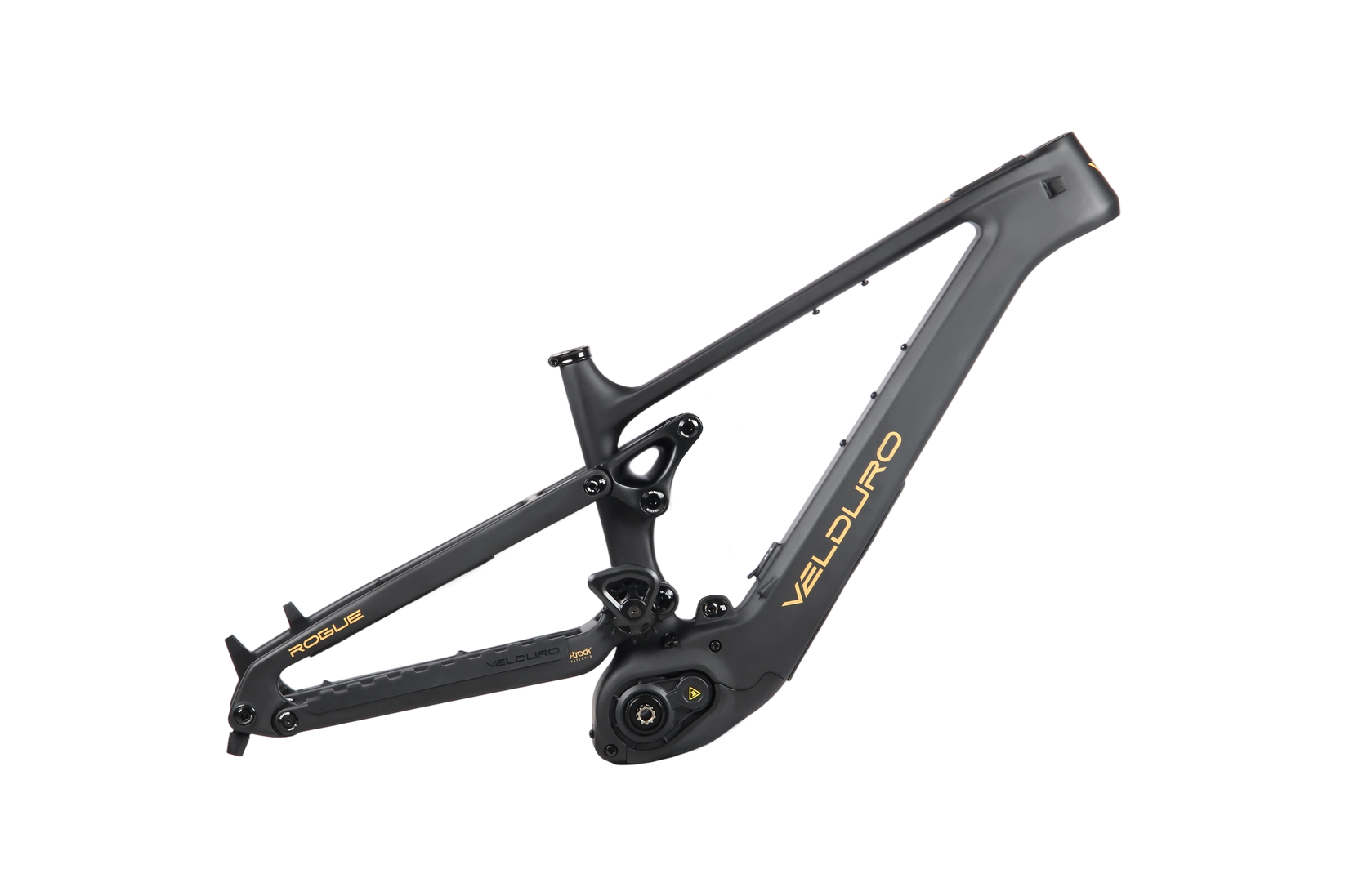

Carbon fibre, up to 172mm travel, mid pivot i-track frame with a 27.5"/29" flip chip and progression adjustment.

Avinox drive unit with a 800Wh battery, Avinox display.

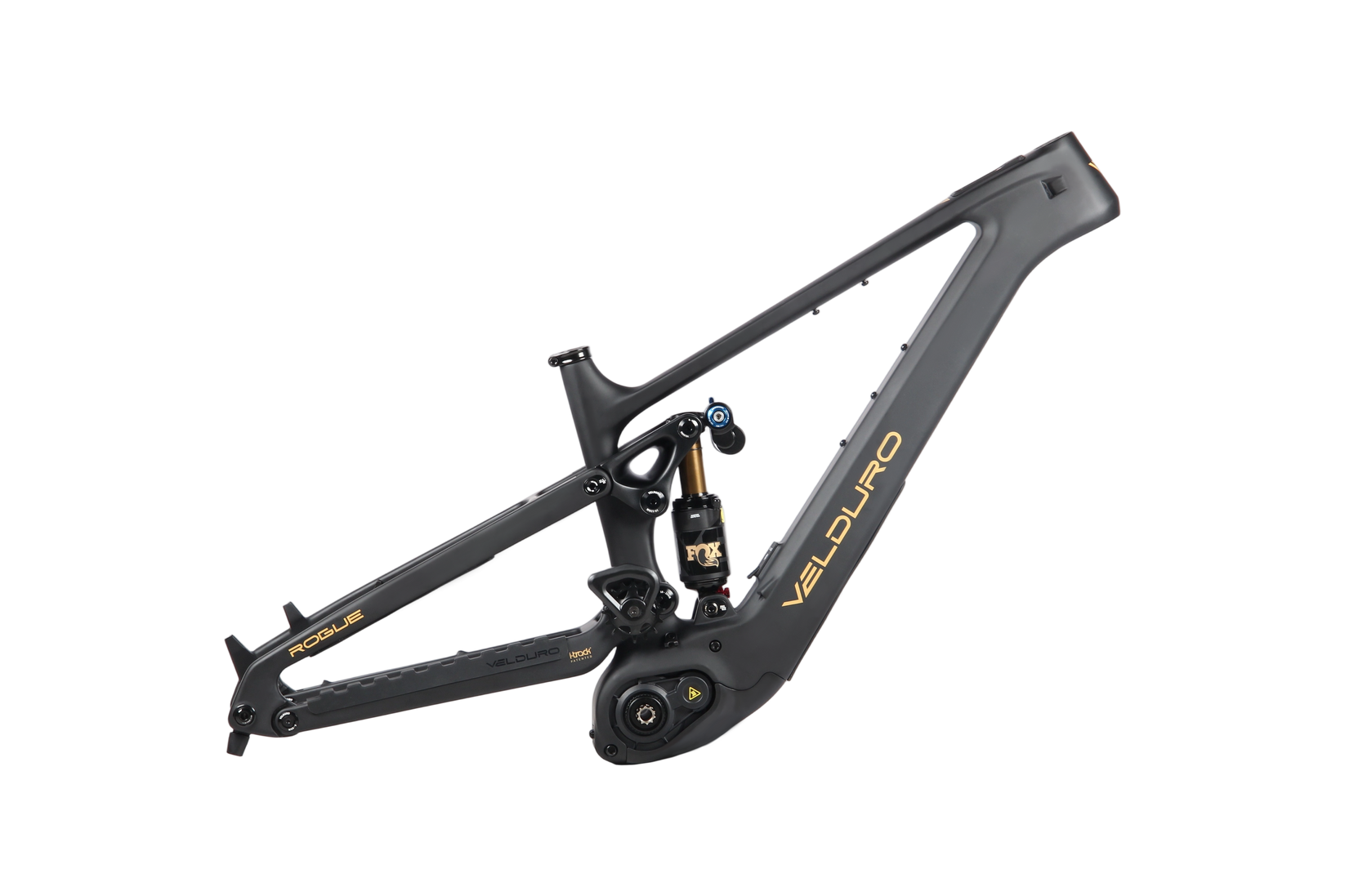

BYO shock or add on a FOX FLOAT X2 Factory with a custom tune.

Specs

FRAME AND SUSPENSION

Frame: Carbon fibre enduro eMTB, mullet or 29", oversize bearings, 12x148 axle spacing

Headset: FSA No.57 44/56

Small parts included:

headset
rear axle
UDH
bottle cage bolts
34.9mm seat post clamp
cable lugs
trunnion bolts
lower shock bolt
cranks and 34T chainring

Note: Frames with shock come with the lower shock bolt and FOX shock specific lower eyelet mounting hardware.

Frames without shock come with the shock bolt but do not come with shock specific lower eyelet mounting hardware - you will need to obtain this to suit your chosen shock. The sizing is 30 x 8mm.

Shock Stroke and Flip Chip Options:

29" Rear Wheel

65mm stroke shock + STD flip chip = 167mm travel
65mm stroke shock + PRO flip chip = 172mm travel
62.5mm stroke shock + STD flip chip = 162mm travel
62.5mm stroke shock + PRO flip chip = 167mm travel
27.5" Rear Wheel

65mm stroke shock + STD flip chip = 165mm travel
65mm stroke shock + PRO flip chip = 170mm travel
62.5mm stroke shock + STD flip chip = 160mm travel
62.5mm stroke shock + PRO flip chip = 165mm travel

MOTOR AND BATTERY
Motor: DJI Avinox M2S 1300W 130Nm (150Nm boost)

Battery: DJI Avinox 36V 800Wh

Display: DJI Avinox 2"

Controller: Right & left wireless controllers

Charger: DJI Avinox 4A 168W

Speed sensor, cables, sensor ring: included

Note: The AXS power cable for powering an AXS derailleur from the bike is not included with the frame, this is a drivetrain component specific to AXS transmissions.
