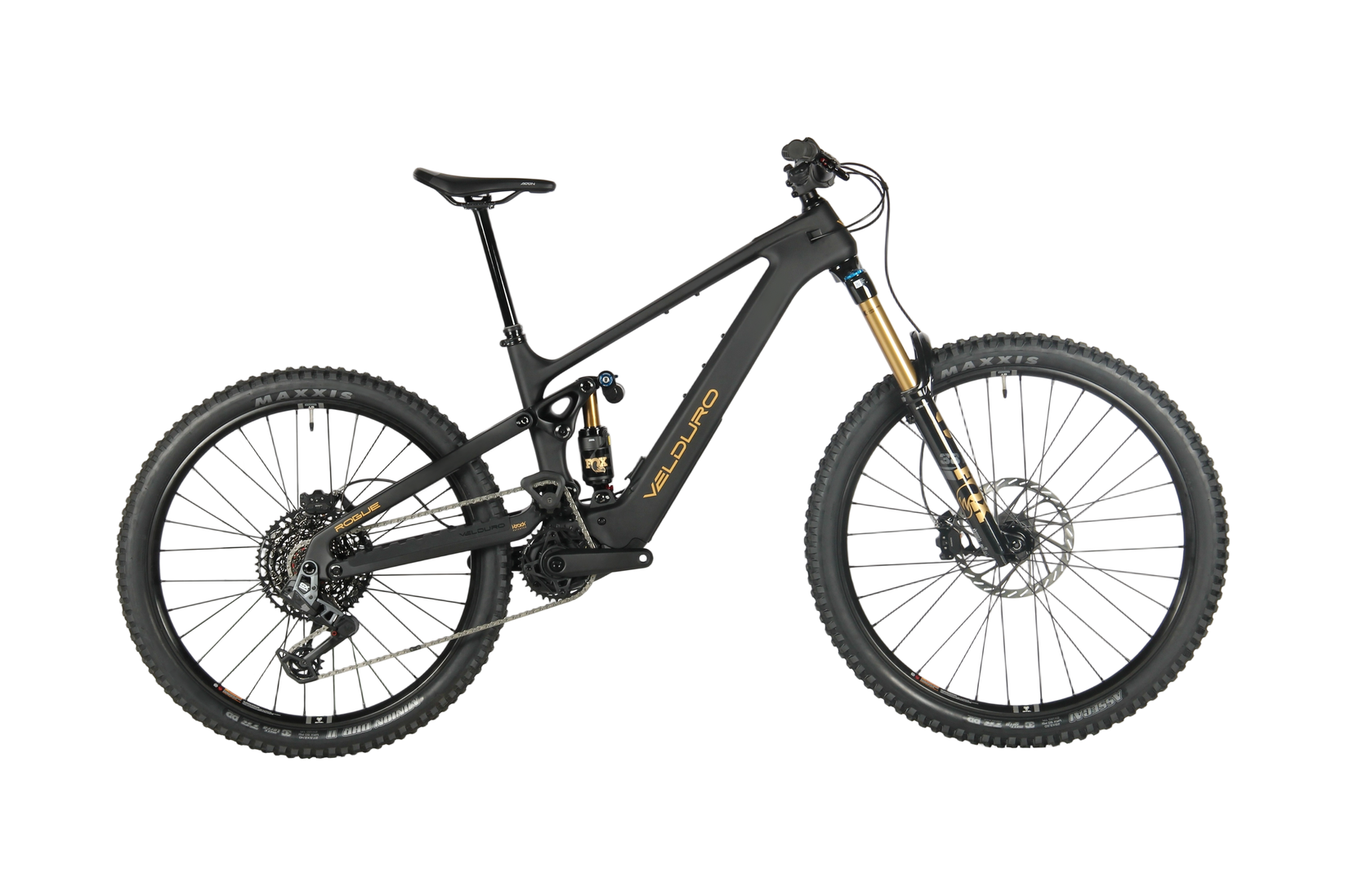

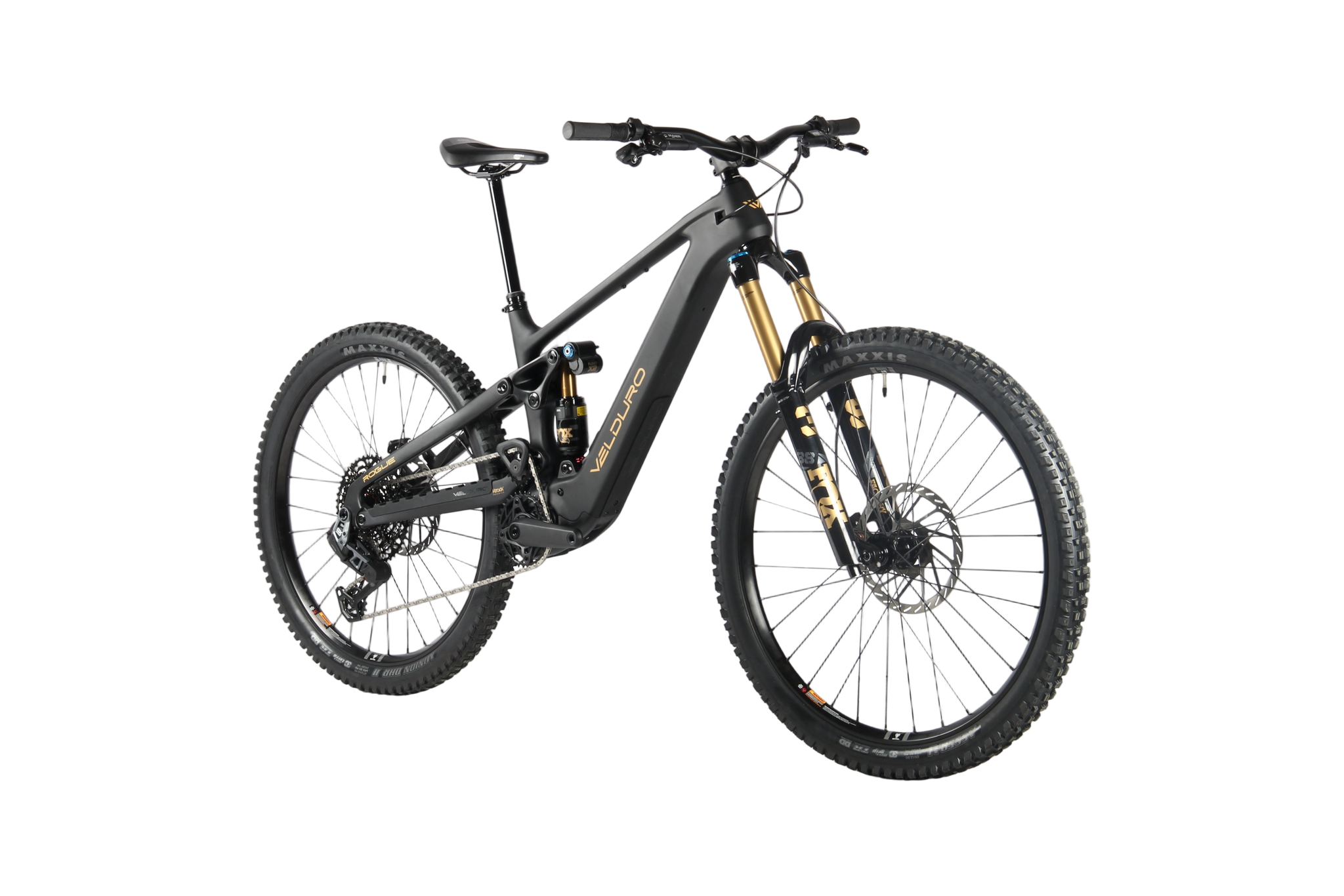

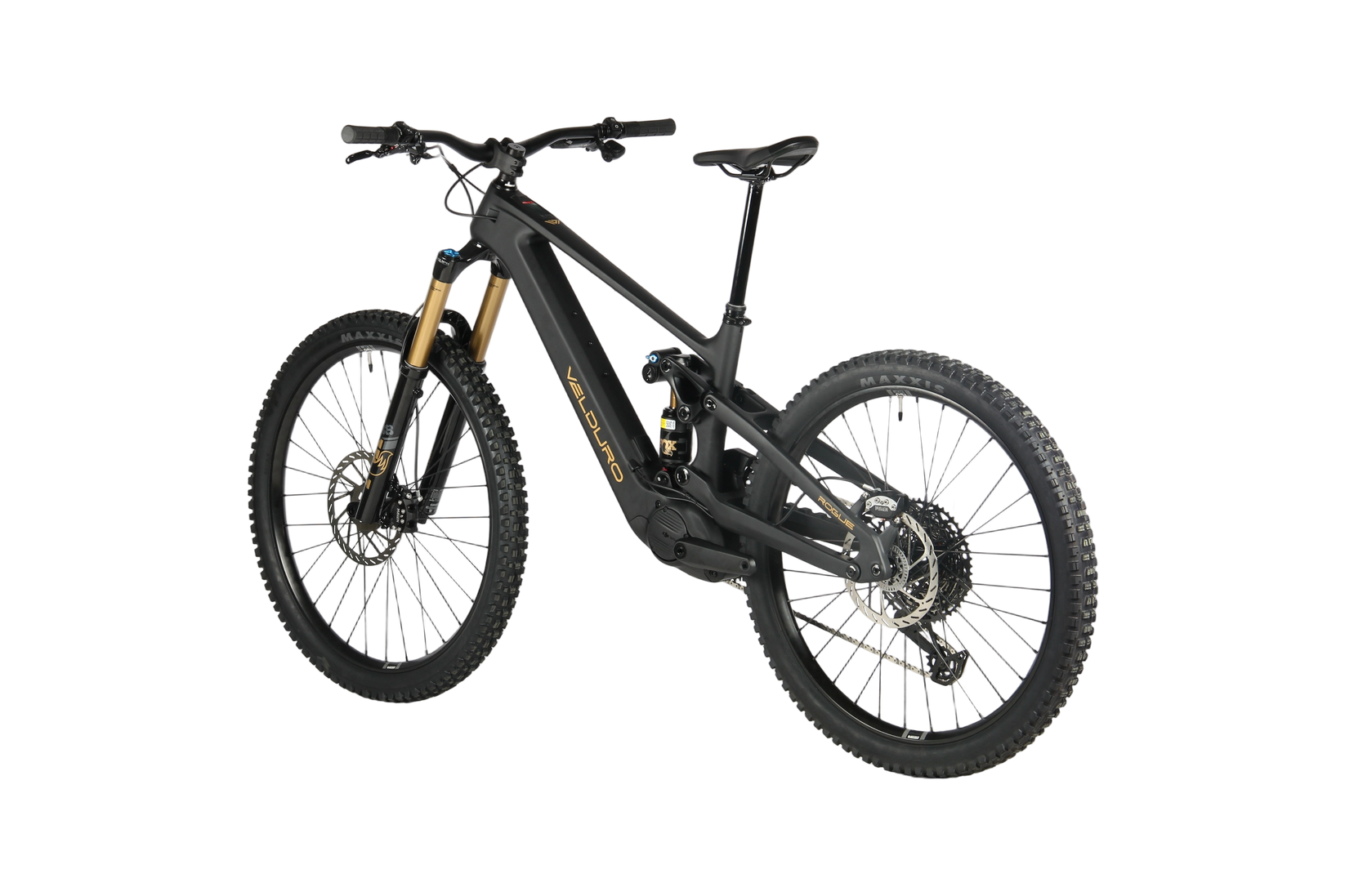

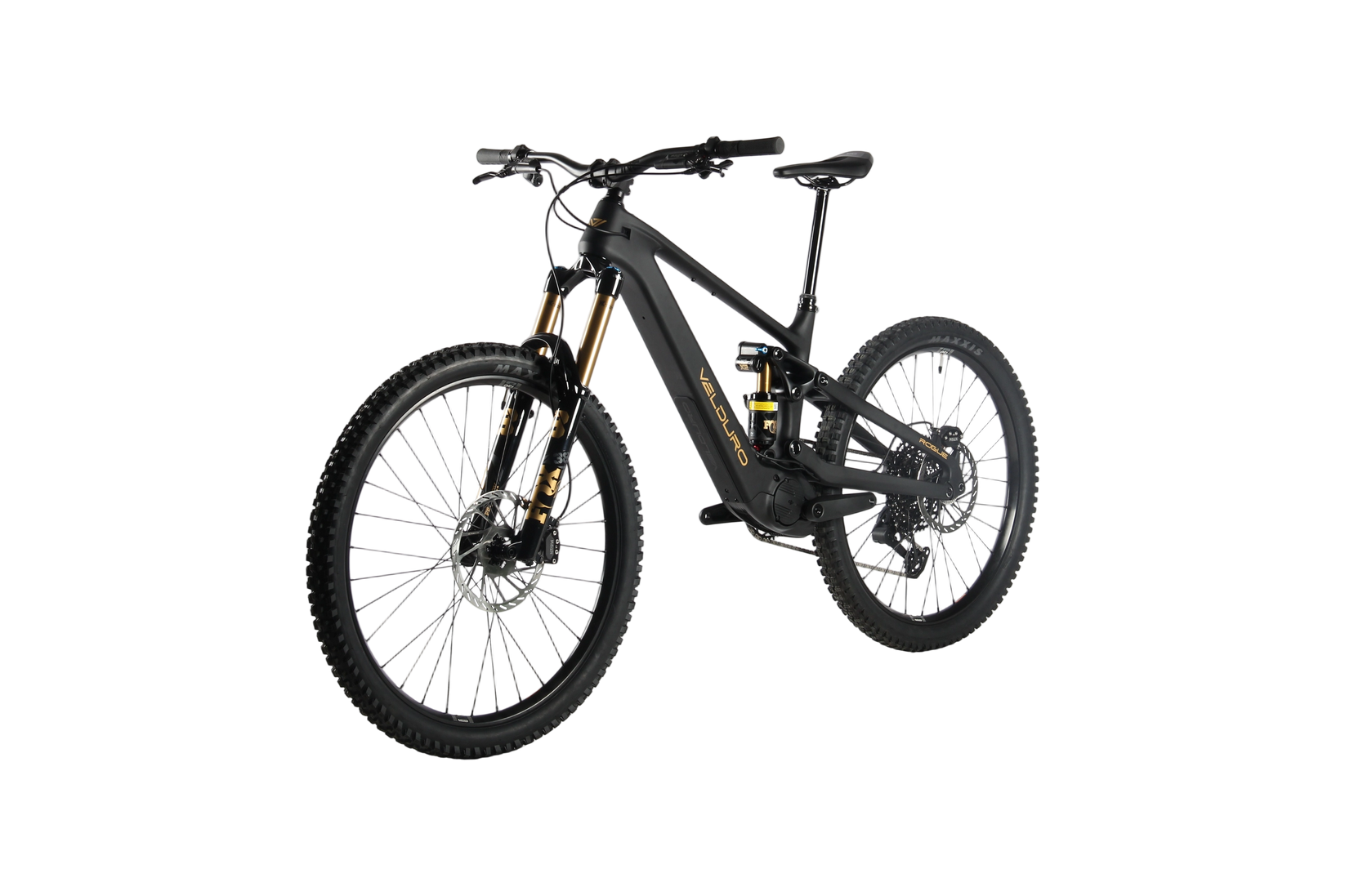

Premium Rogue build

High end parts, hand picked for performance and reliability. Dependable kit that just works, and keeps working.

Carbon fibre, up to 172mm travel, mid pivot i-track frame with a 27.5"/29" flip chip and progression adjustment.

Fox Factory suspension

Maven brakes

GX AXS transmission

Velduro carbon wheels

OneUp finishing kit

And of course, the Avinox drive unit with a 800Wh battery

Big travel, strong parts, big torque and a big battery

Available in size small, medium, large and extra large

Full Specs

FRAME AND SUSPENSION
Frame: Carbon fibre enduro eMTB, mullet or 29", oversize bearings, 12x148 axle spacing

27.5" + STD flip chip = 165mm travel
27.5" + PRO flip chip = 170mm travel
Headset: FSA No.57 44/56

Fork: 2026_25 Fox 38 Factory Grip X2, 29", 170mm, 15x110

Shock: 2026 Fox X2 Factory, 205 x 65, trunnion

DRIVETRAIN
Shifter: Sram AXS pod controller

Derailleur: Sram GX transmission with power cable

Cassette: Sram XS-1275 10-52T

Chainring: Sram eMTB 104BCD 34T

Chain: Sram GX flat top

Cranks: Avinox SL Crank 155mm

BRAKES
Brakes: Sram Maven Silver A1

Rotors: Sram HS2 6 bolt 220mm front, 200mm rear

WHEELS AND TYRES
Wheels: Velduro e-Enduro Carbon EC-30

Rims: Carbon, F: 29, R: 27.5, 30mm internal width

Hubs: Alloy, 28H, 6 bolt, sealed cartridge bearing, straight pull; F: 2 bearing, 15x110; R: 4 bearing, 148x12, 78T XD

Spokes: Sapim e-light straight pull

Tyres: F: Assegai 29x2.5 3CG/TR/DD, R: Minion DHRII 27.5x2.4 3CT/TR/DD

Tubeless compatible but ships with tubes

CONTROLS
Handlebar: OneUp Alloy 35D 800L 35R

Stem: OneUp 42mm

Grips: Velduro Enduro

Seatpost: OneUp Dropper V3 31.6 S:180mm, M/L:210mm, XL:240mm

Saddle: Fizik Terra Aidon X5 145mm

Dropper lever: OneUp Dropper Lever V3.1

MOTOR AND BATTERY
Motor: DJI Avinox M2S 1300W 130Nm (150Nm boost)

Battery: DJI Avinox 36V 800Wh

Display: DJI Avinox 2"

Controller: Right & left wireless controllers

Charger: DJI Avinox 4A 168W
