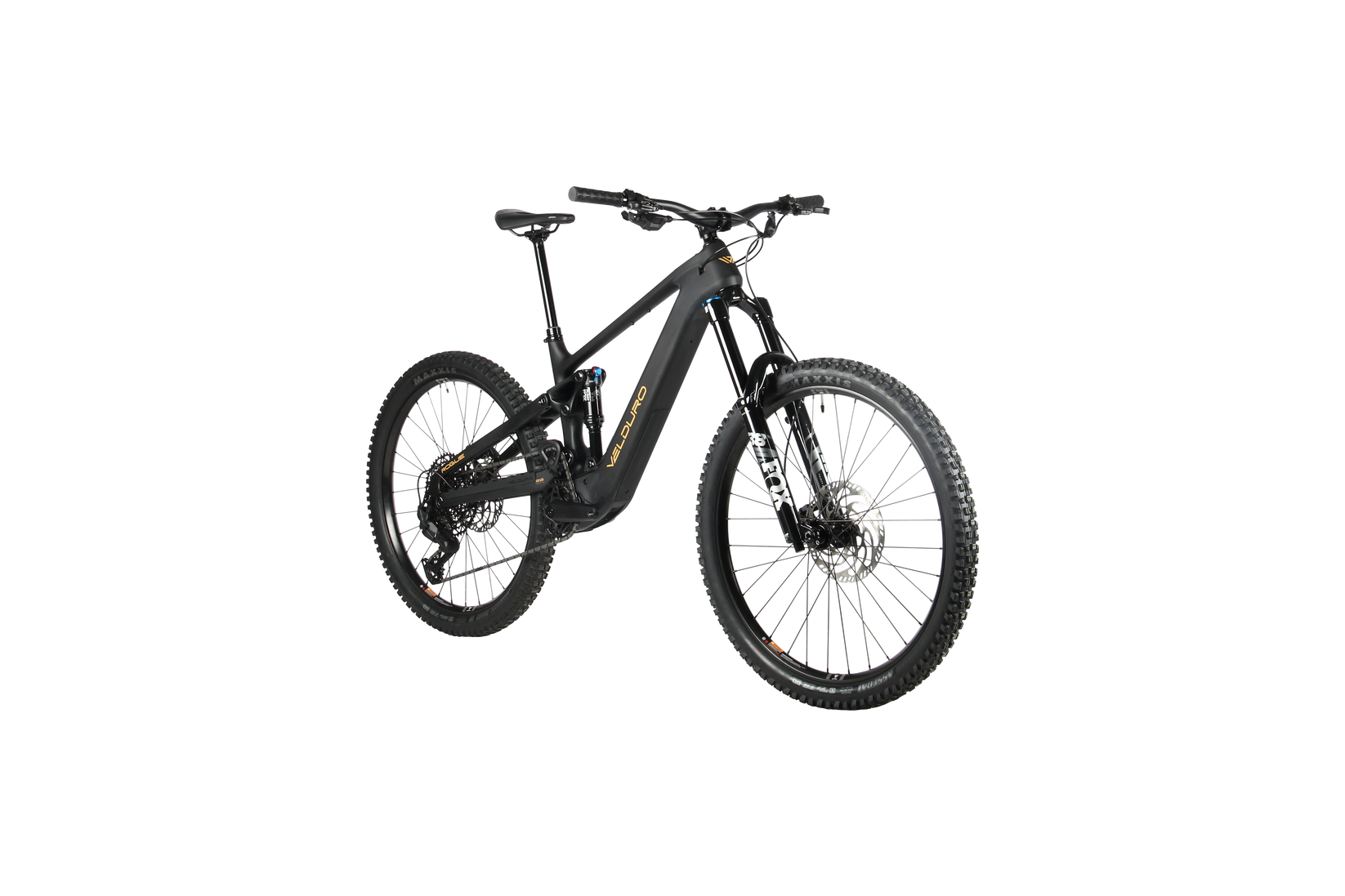

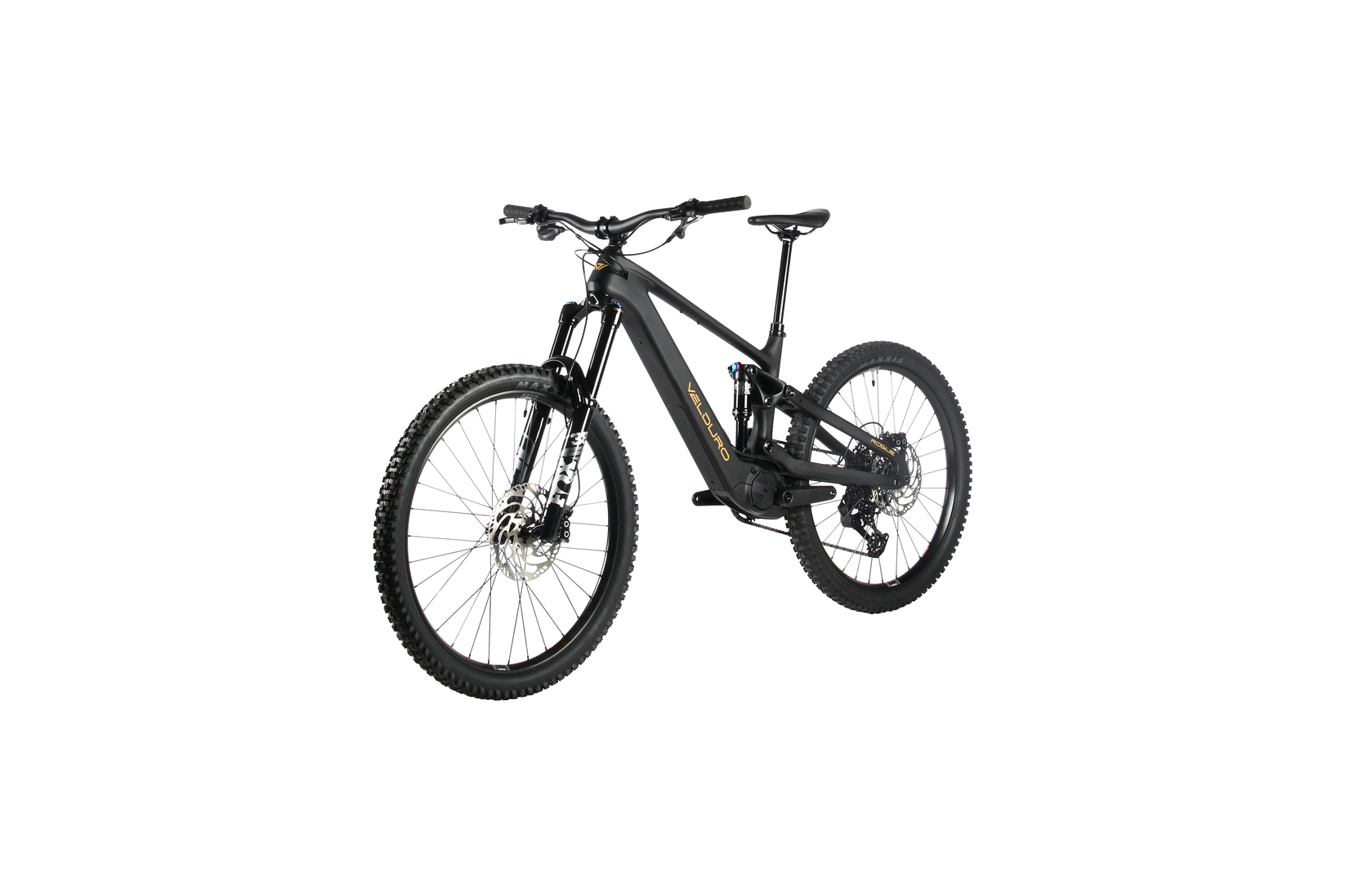

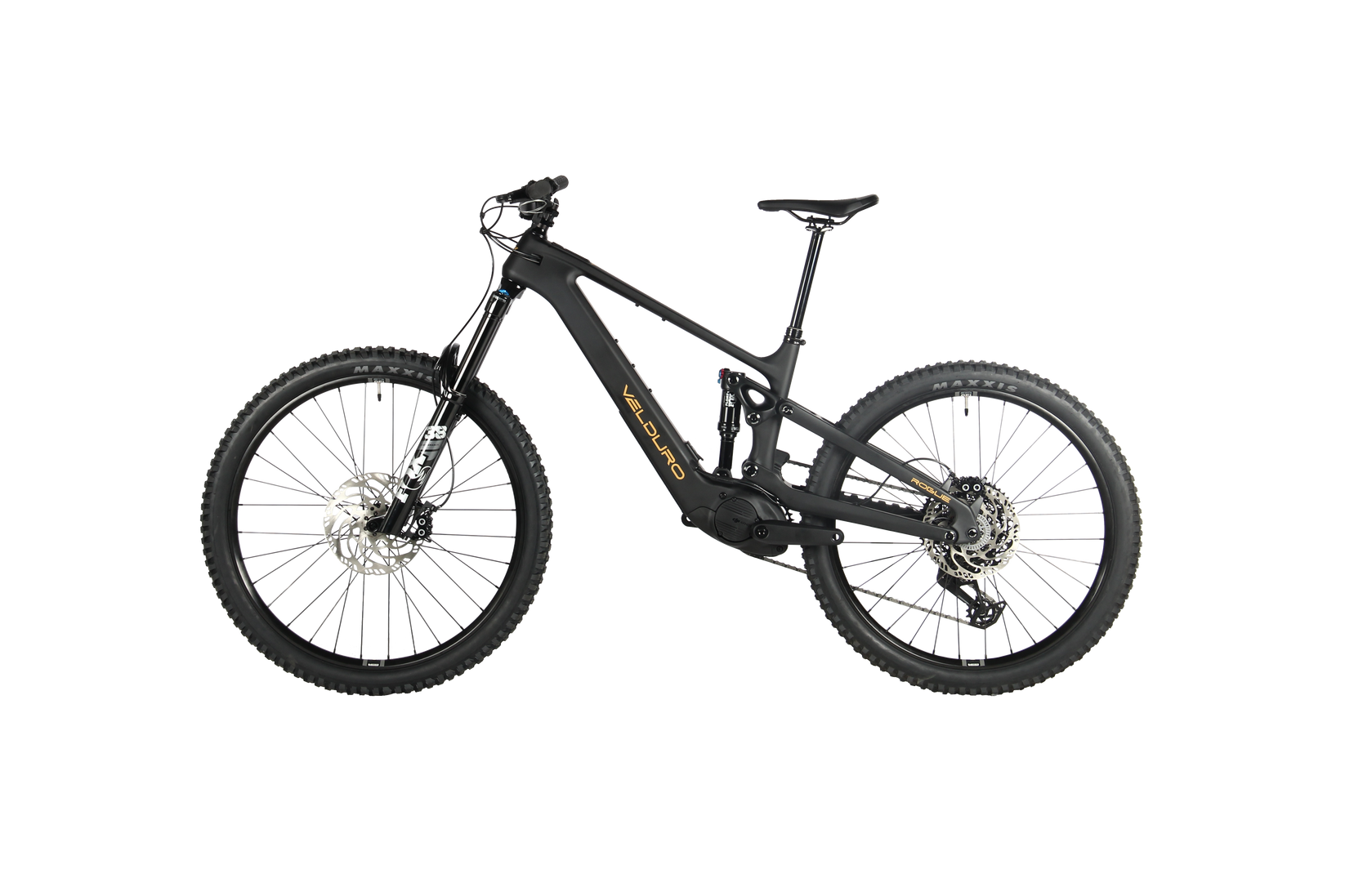

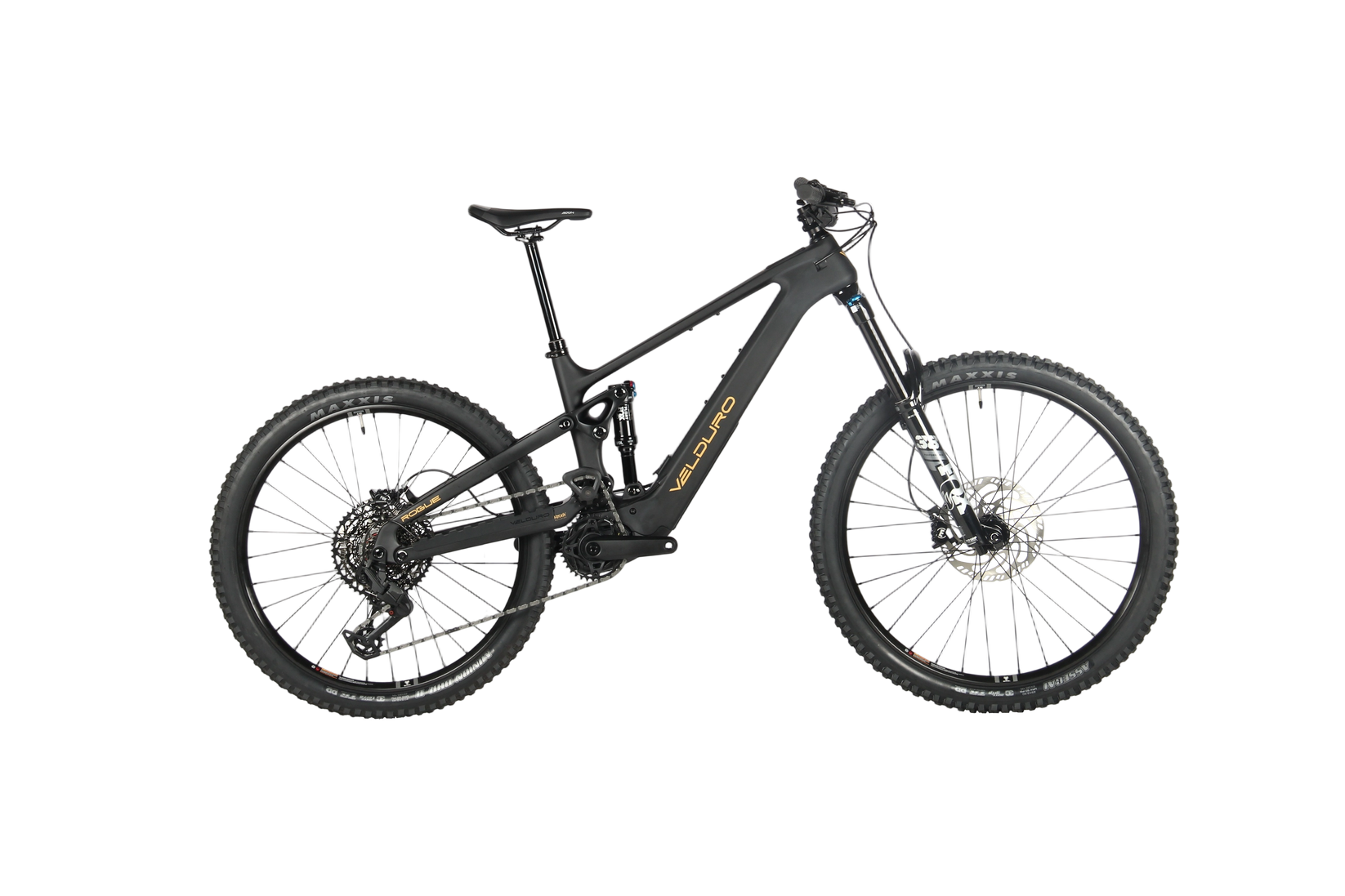

Standard Rogue build

Save some cash without skimping on performance. Solid parts, hand picked for performance and reliability. Dependable kit that just works, and keeps working.

Carbon fibre, up to 172mm travel, mid pivot i-track frame with a 27.5"/29" flip chip and progression adjustment.

Fox suspension

Magura brakes

Eagle 70 Transmission

Velduro finishing kit

And of course, the Avinox drive unit with a 800Wh battery.

Big travel, strong parts, big torque and a big battery.

Full Specs

FRAME AND SUSPENSION
Frame: Carbon fibre enduro eMTB, mullet or 29", oversize bearings, 12x148 axle spacing

27.5" + STD flip chip = 165mm travel
27.5" + PRO flip chip = 170mm travel
Headset: FSA No.57 44/56

Fork: Fox 38 Performance Grip, 29", 170mm, 15x110

Shock: Fox Float Performance, 205 x 65, trunnion

DRIVETRAIN
Shifter: Sram Eagle 70 single click

Derailleur: Sram Eagle 70 Transmission

Cassette: Sram XS-1270 10-52T

Chainring: Sram eMTB 104BCD 34T

Chain: Sram Eagle 70 T-type

Cranks: Avinox SL Crank 155mm

BRAKES
Brakes: Magura MT5, HC lever

Rotors: Magura MDR-C 6 bolt 220mm front, 203mm rear

WHEELS AND TYRES
Wheels: Velduro e-Enduro Alloy EA-30

Rims: Alloy, F: 29, R: 27.5, 30mm internal width

Hubs: Alloy, 32H, 6 bolt, sealed cartridge bearing, J bend; F: 2 bearing, 15x110; R: 4 bearing, 148x12, 21T HG freehub

Spokes: Sapim e-light J bend

Tyres: Maxxis Assegai 29x2.5 3CG/TR/DD and Maxxis Minion DHRII 27.5x2.4 3CT/TR/DD

CONTROLS
Handlebar: Velduro Alloy 35D 800L 20R

Stem: Velduro 40mm

Grips: Velduro Enduro

Seatpost: Velduro Dropper 31.6 S/M:170mm, L/XL:200mm

Saddle: Fizik Terra Aidon X5 145mm

Dropper lever: Velduro Dropper Lever

MOTOR AND BATTERY
Motor: DJI Avinox M2S 1300W 130Nm (150Nm boost)

Battery: DJI Avinox 36V 800Wh

Display: DJI Avinox 2"

Controller: Right & left wireless controllers

Charger: DJI Avinox 4A 168W
