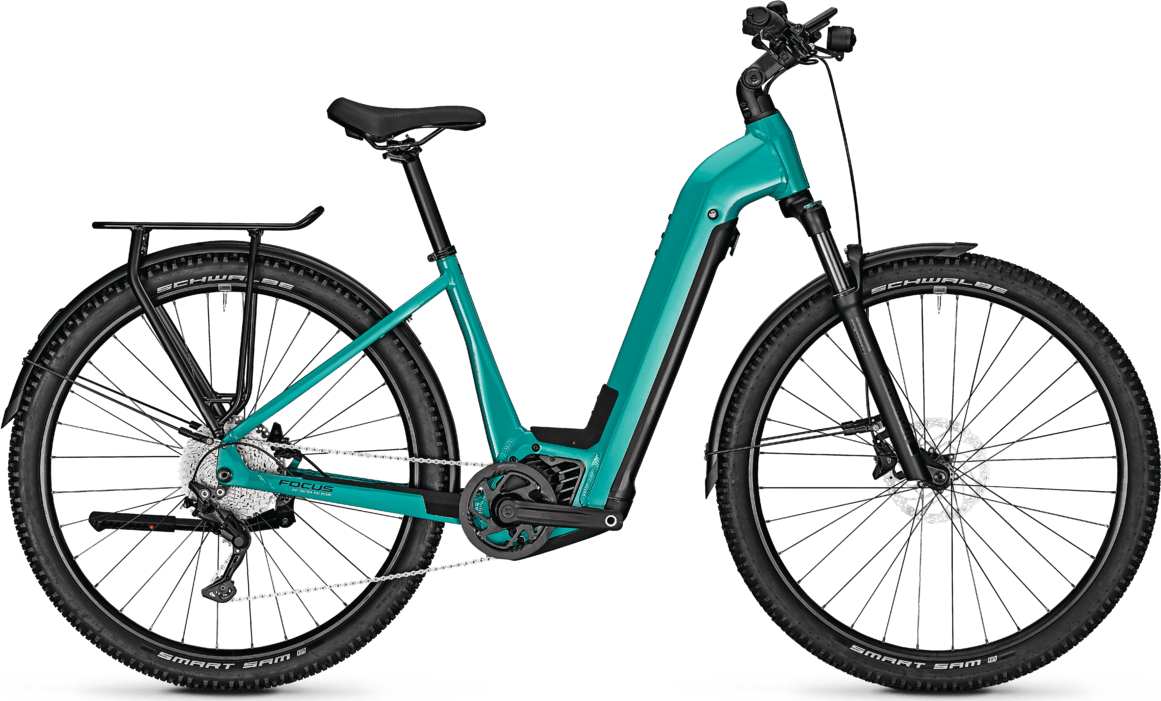

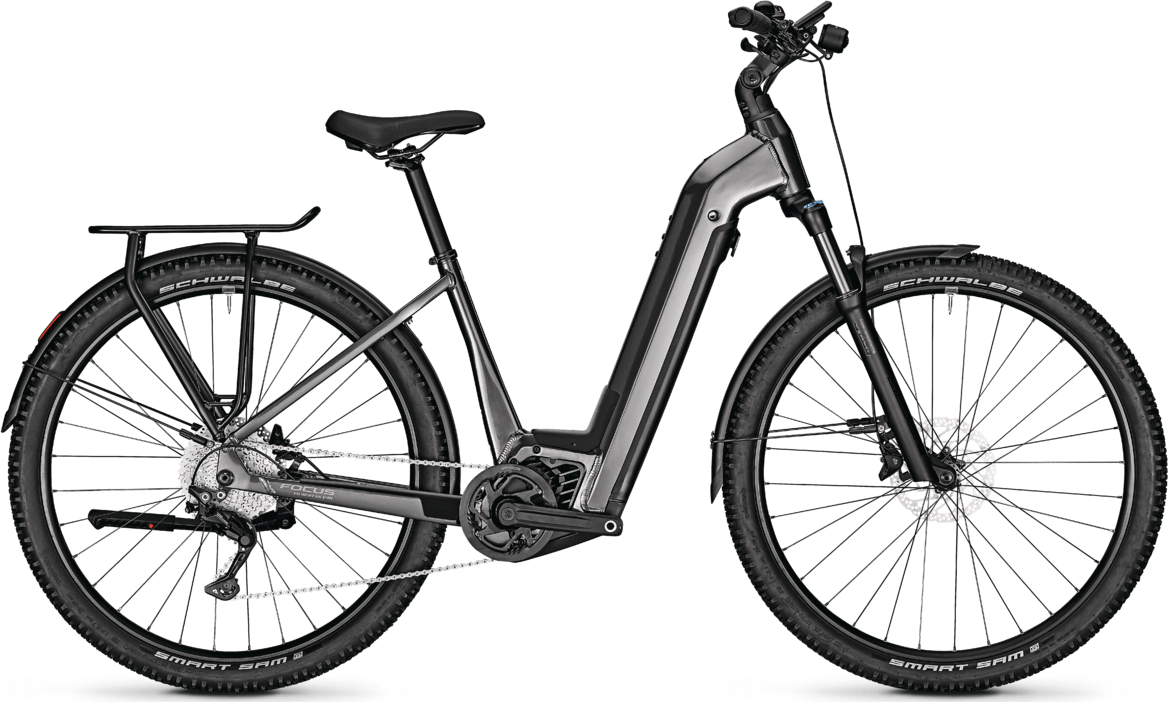

2023 Focus Aventura2 6.7 (Step through)
Item is in stockHurry! Low inventoryAvailable now - Contact us
Item is unavailable
GEOMETRY
| S | M | L | XL | ||
|---|---|---|---|---|---|
| SIZE (MM) | 40 | 44 | 48 | 52 | |
| SIZE | 400 | 440 | 480 | 520 | |
| HANDLEBAR WIDTH (MM) | 760 | 760 | 760 | 760 | |
| STEM LENGTH | 60 | 60 | 60 | 60 | |
| CRANKARM LENGTH (MM) | 170 | 170 | 170 | 170 | |
| SEAT POST LENGTH | 350 | 350 | 350 | 350 | |
| A | SEAT TUBE LENGTH | 400 | 440 | 480 | 520 |
| B | EFFECTIVE TOP TUBE | 593 | 613 | 634 | 660 |
| C | HEAD TUBE ANGLE (MM) | 68 | 68 | 68 | 68 |
| D | EFFECTIVE SEAT TUBE ANGLE (MM) | 73.5 | 73.5 | 73.5 | 73.5 |
| E | CHAINSTAY LENGTH | 470 | 470 | 470 | 470 |
| F | BOTTOM BRACKET DROP | 65 | 65 | 65 | 65 |
| G | HEAD TUBE LENGTH | 135 | 135 | 140 | 160 |
| H | FORK CONSTRUCTION HEIGHT | 515 | 515 | 515 | 515 |
| I | PRE-RAKED FORK | 51 | 51 | 51 | 51 |
| J | WHEELBASE LENGTH | 1152 | 1172 | 1191 | 1217 |
| K | STACK | 650 | 650 | 656 | 675 |
| L | REACH | 400 | 420 | 440 | 460 |
SPECIFICATION
FRAME MATERIAL
Aluminium
FRAME
7005 hydroformed aluminium, 3D forging, 148x12 mm thru axle, post mount 180 mm
FORK
SR Suntour XCR 34 LO Coil, 15x110 mm
TRAVEL OF SUSPENSION FORK
100 mm
MOTOR
Bosch Performance CX Gen4, 85 Nm, 250 W
BATTERY WATT-HOURS
625 Wh
BATTERY AMPERE HOURS
17,4 Ah
DISPLAY
Bosch LED Remote + Intuvia 100
SHIFTER
Shimano Deore M4100, 10-speed
REAR DERAILLEUR
Shimano Deore M4120, 10-speed
SPROCKET
Shimano Deore M4100, 10-speed
CHAIN
KMC X10, 10-speed
CRANKSET
FSA CK-320, aluminium
TRANSMISSION OF DRIVE
front: 36, rear: 11-42
BOTTOM BRACKET
Integrated in Drive Unit
HANDLEBAR
Aluminium, 760 mm, flatbar, backsweep: 9°, 35,0 mm
STEM
FOCUS C.I.S. integrated, 60 mm, 30°, 35 mm, aluminium
HEADSET
ACROS ZS56/ZS66 (ICR), FOCUS C.I.S. Integrated
SADDLE
Selle Royal HRN 4007
SEATPOST
Aluminium, 31.6 mm
BRAKE CALIPER
Shimano MT200, 2-piston, hydraulic disc brake
BRAKE LEVER
Shimano MT200
BRAKE
Disc
RIMS
Rodi TRYP25, 25-622
REAR HUB
Shimano Alivio MT400, 12x148 mm
FRONT HUB
Shimano Alivio MT400, 15x110 mm
TIRES
Schwalbe Smart Sam 2.25, 57-622
FENDER
Eurofender Duo plastic, 65 mm, with edge protector
HEADLIGHT
Litemove SE90 LED, 90 Lux
TAILLIGHT
TRELOCK LS421, Brake light
GEARS
10
BIKE WEIGHT INCL. BATTERY IN KG.
25,2
SIZE
40,48,44,52
