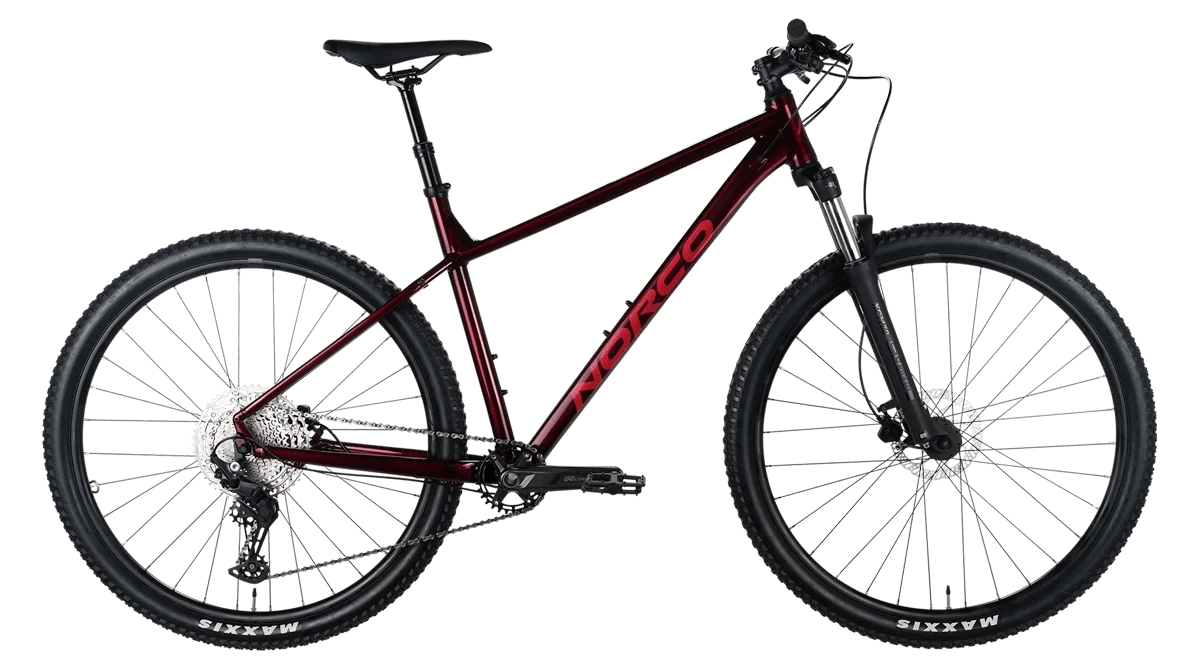

2023 Norco STORM 1
2023 Norco STORM 1

2023 Norco STORM 1

$1,399.00 AUD
Item is in stockHurry! Low inventoryAvailable now - Contact us Item is unavailable
COLOUR
SIZE
Wheel Size
FRAME 6061 Alloy, Internal Routing, Smooth Welds
FORK Suntour XCM HLO DS, 100mm, 42mm Offset (27.5), 46mm Offset (29)
REAR SHIFTER Shimano Deore SL-M5100
REAR DERAILLEUR Shimano Deore RD-M5100
CRANKSET Prowheel MPX, 30T , 170mm (XXS, XS, S), 175mm (M, L, XL)
BOTTOM BRACKET Prowheel Cartridge Bearing, BSA Threaded
CASSETTE Sunrace CMX8, 11-51T, 11 Speed
CHAIN KMC X11
FRONT BRAKE Tektro HD-M275 Hydraulic, Resin Pads
FRONT BRAKE ROTOR Tektro 160mm
REAR BRAKE Tektro HD-M275 Hydraulic, Resin Pads
REAR BRAKE ROTOR Tektro 160mm
BRAKE LEVERS Tektro HD-M275, HD-M276 Short Reach on Step-Thru
HANDLEBAR X6 Alloy, 720mm (XXS, XS, S), 740mm (M, L, XL), 25mm Rise
STEM Alloy 60mm, 31.8mm Clamp
SEATPOST TranzX YSP18 Dropper, 130mm
HEADSET Zero Stack
SADDLE Norco XC
GRIPS Norco
PEDALS VP Nylon Flat
FRONT HUB Alloy QR, 9x100mm QR, 6 Bolt
REAR HUB Alloy QR, 10x135mm QR, HG, 6 Bolt
RIMS Alex DP21 TRS
FRONT TIRE Maxxis Rekon DK60 2.25"
REAR TIRE Maxxis Rekon DK60 2.25"
SPOKES/NIPPLES Stainless Black
RIM TAPE Nylon+PVC rim tape

Geometry

Storm
XXS XS S M M L XL
Wheel Size 27.5" 27.5" 27.5" 27.5" 29" 29" 29"
Travel (mm front)
100
Reach 335 365 395
425
 455 485
Stack 592 602 611 615 624 633 643
HTA Head Tube Angle
68.0
68.5
OS Fork Offset
42
51
ST Seat Tube Length 340 390 430
470
 510 550
STA Effective Seat Tube Angle
75.0
 75.00
75.0
RC Rear Centre Length
435
450
BB Bottom Bracket Drop
49
 44
63
BBH Bottom Bracket Height
305
310
HTT Horizontal Top Tube 494 526 559 590 592 625 657
WB Wheelbase 1032 1066 110 1134 1146 1180 1214
SOH Standover 588 616 632 673 686 721 754
HT Head Tube Length 105 115 125 135 105 115 125
Trail
98
92
Maximum Post Insertion 250 280 300 250 240 280 300
Stem Length
60
Crank Length
170
175
Tire Size
2.0" - 2.35"
Water Bottle Compatible
1x750mL
2x750mL
