Orbea Kemen Top Bar, Shimano Steps, Integrated battery, Hydroformed Alloy 6061 series Internal Cable Routing, Boost 148x12, carrier and kickstand compatible

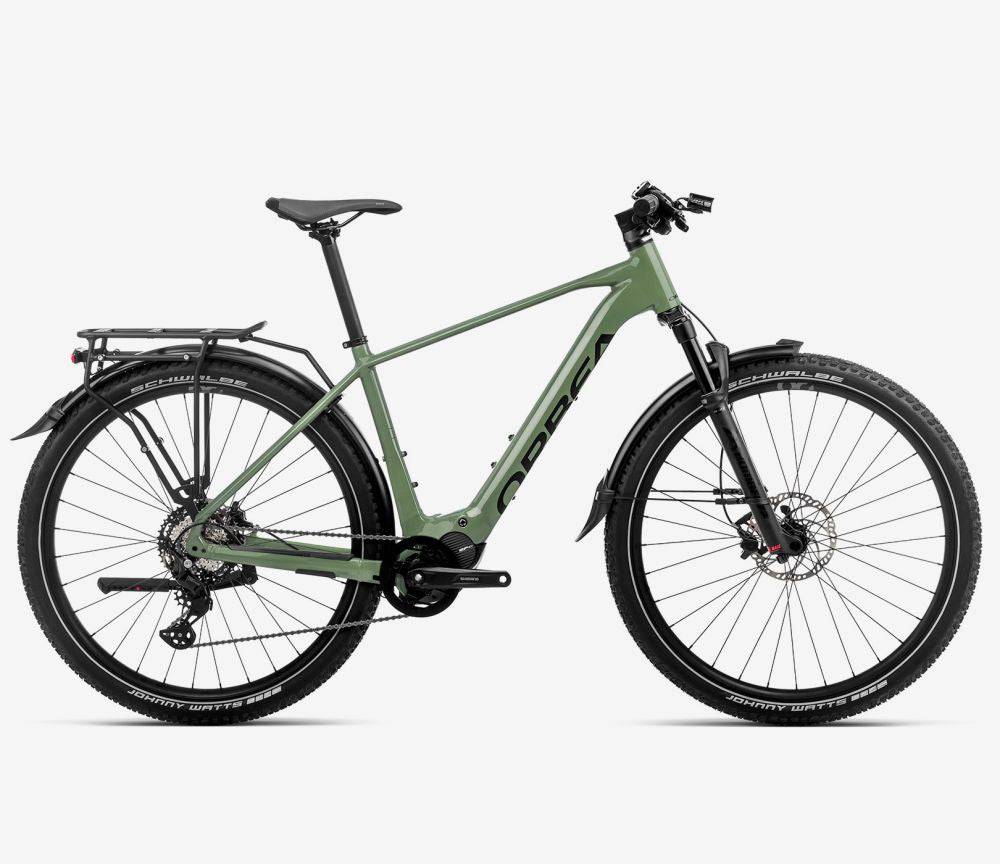

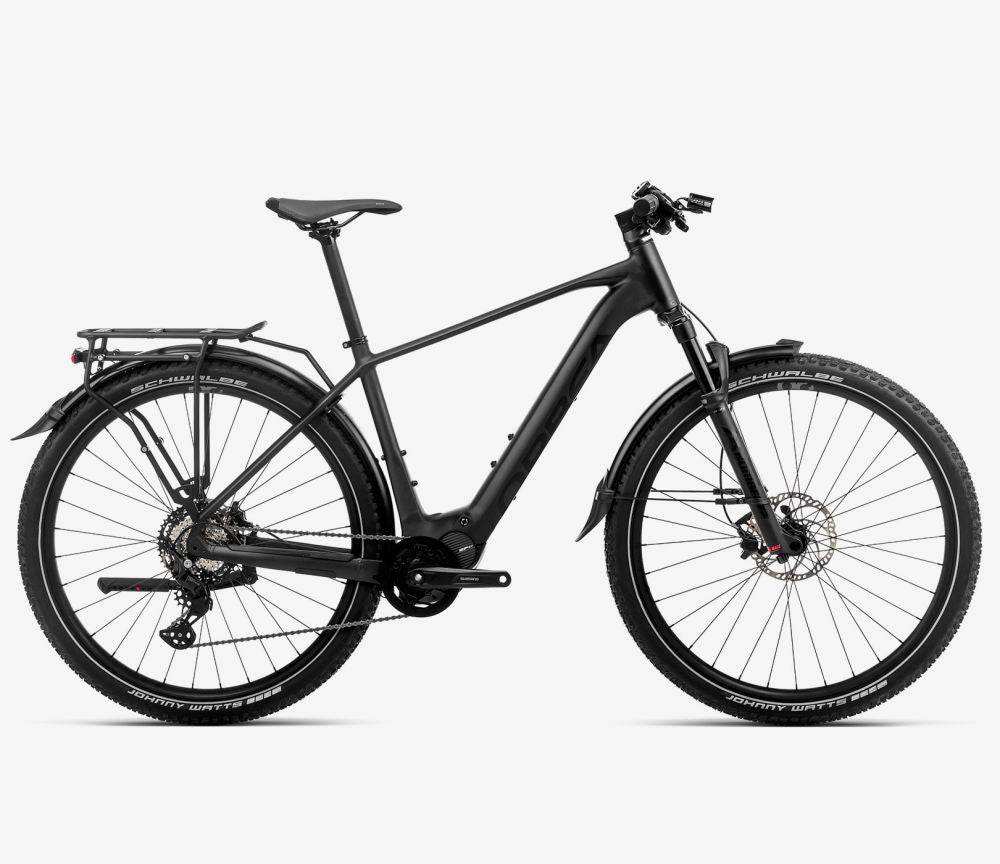

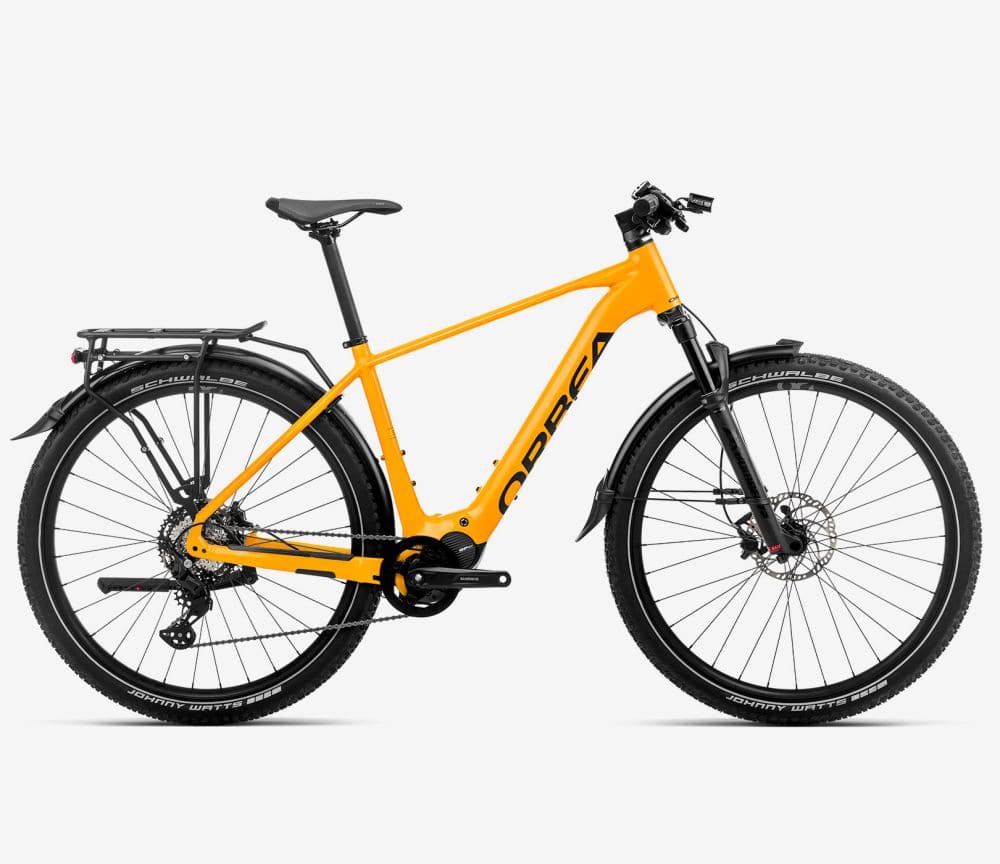

ORBEA KEMEN SUV 30 2023
Item is in stockHurry! Low inventoryAvailable now - Contact us
Item is unavailable
SPECIFICATIONS
FRAMES
FRAME
FORK
Marzocchi Bomber Z2 100 QR15x110 E-Bike Optimized
HEADSET
FSA 1-1/2" Integrated Aluminium Cup
DRIVETRAIN
CHAINRING
Alloy EP8 36t w/chainguard
CRANK
Shimano Steps EM600
SHIFTERS
Shimano Deore M5130 Link Glide
CASSETTE
Shimano CS-LG400 11-43t 10-Speed
REAR DERAILLEUR
Shimano Deore M5130 Link Glide GS Shadow Plus
CHAIN
KMC eGlide
COCKPIT
HANDLEBAR
OC Mountain Control MC31, Rise20, Width 800
STEM
Alloy forged, 35mm interface, -6º, ICR
BRAKES
BRAKES
Magura MT30 Hydraulic Disc Easy Route Connection
BRAKES CONFIGURATION
WHEELS
WHEELS
Alloy, Tubeless, 29", 29c, 32H
TYRES
Schwalbe Johnny Watts, 29x2.35 RaceGuard Reflective Tape
ACCESSORIES
PEDALS
VP-537 Black
REAR CARRIER
Orbea Kemen Suv oversize Alloy Rear Carrier, w/MIK HD and Oertlieb QL3.1 system (Max:25Kg)
CARRIER ACCESSORIES
N/A
MUDGUARD
CURANA Apollo 70mm
FRONT POSITION LIGHT
Front position light, on head tube, COB Led, On/Off, 60 Lumen, ECE50.
FRONT LIGHT
Lezyne Ebike POWER STVZO PRO E115 with remote 310 lumens
REAR LIGHT
Lezyne Super Bright CARRIER STVZO Alert Technology 12Lumen
QUICK STAND
Ursus Mooi rear adjustable
COMPONENTS
SEATPOST
Alloy, 31.6mm, Setback 0
SADDLE
Selle Royal Vivo 145x269mm
EBIKE
MOTOR
Shimano EP801
BATTERY
Orbea Internal 540Wh (Optional 250 Wh Range Extender)
RANGE EXTENDER
N/A
DUAL BATTERY
CHARGER
Orbea 2.Generation eBike Smart charger 42V/2-4A
REMOTE
EN600-L
