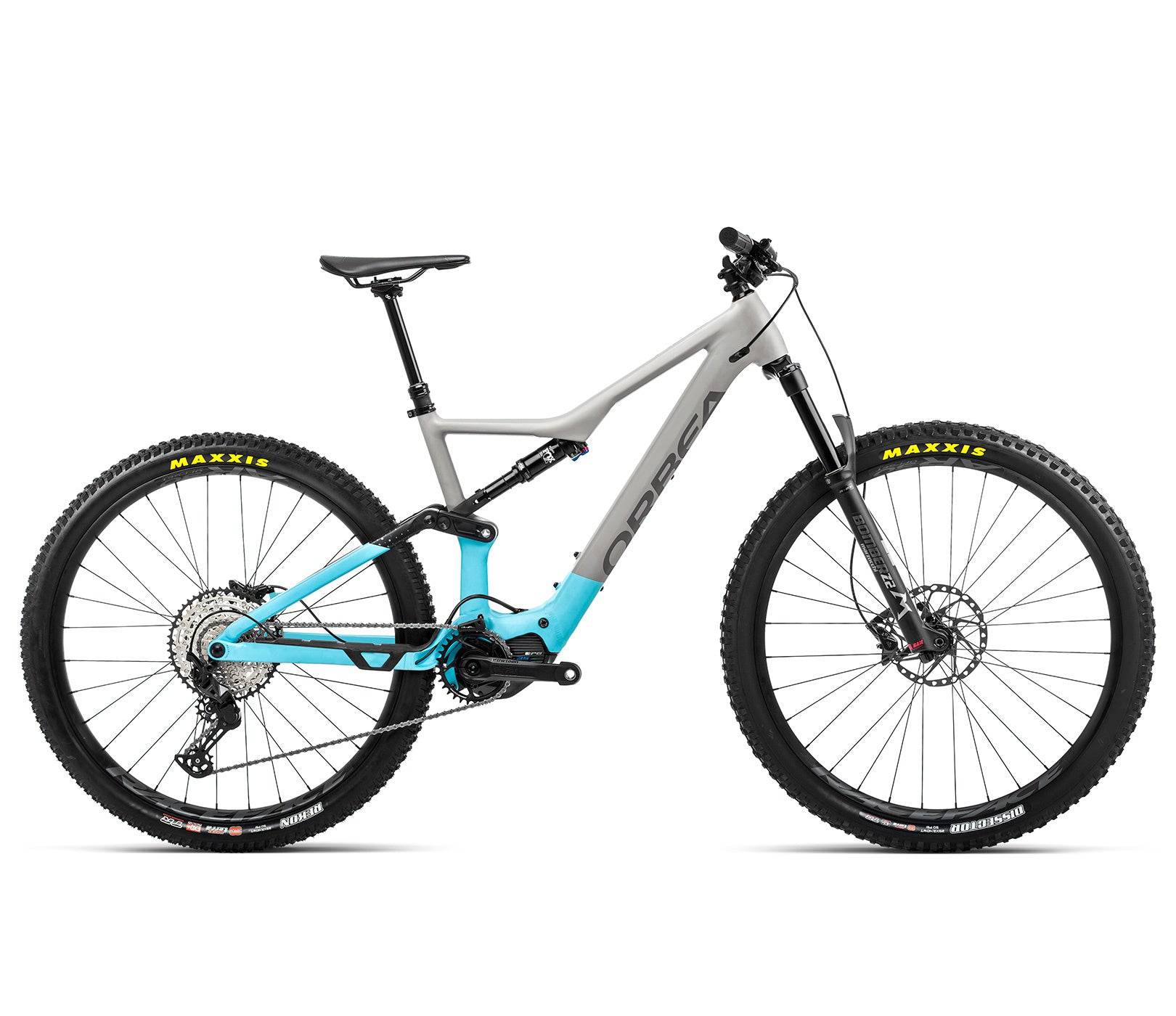

A machine designed to expand your trail experience and bring you closer to the moment. Rise brings you nearer the sensation that less “e” delivers more “bike”. Whether you crave riding greater distances, reaching more epic locations, improving efficiency or increasing the frequency of your adventures, Rise beyond expectations and discover the new standard in MTB.

• FRAME Orbea Rise Hydro 2022 140mm travel 29" Boost 12x148
• SHOCK Fox Float DPS Performance 3-Position Evol custom tune 210x55mm
• FORK Marzocchi Bomber Z2 140 QR15x110
• CHAINRING e*thirteen e*spec Direct Mount 32T Boost
• CRANK e*thirteen Plus Alu
• HEADSET Acros Alloy 1-1/8 - 1-1/2" Integrated
• HANDLEBAR OC1 35mm 12mm Rise 780mm
• STEM OC1 3D Forged 35mm interface 7º
• SHIFTERS Shimano Deore M6100
• BRAKES Shimano MT410 Hydraulic Disc
• ROTORS 180mm Front /180mm Rear
• CASSETTE Shimano CS-M7100 10-51t 12-Speed
• REAR DERAILLEUR Shimano SLX M7100 SGS Shadow Plus
• CHAIN Shimano M6100
• WHEELS Race Face AR 30c Tubeless Ready
• TYRES Maxxis Dissector 2.40" 60 TPI 3CMaxxTerra Exo TLR
• TYRES Maxxis Rekon 2.40" 120 TPI 3CMaxxTerra Exo+ TLR
• SEATPOST OC MC20 Mountain Control Dropper, 31,6mm
• SEATPOST LEVER OC Horizontal
• SADDLE Fizik Taiga S-alloy rail
• CHAINGUIDE Orbea Rise chainguide
• MOTOR Shimano EP8-RS
• BATTERY Orbea RS Internal 540Wh
• RANGE EXTENDER
• DISPLAY Shimano SC-E7000
• CHARGER Orbea Smart Charger (42V-4A)
• REMOTE Shimano E7000 switch unit for assist
• FRONT WHEEL AXLE
